Vibrating tables selection

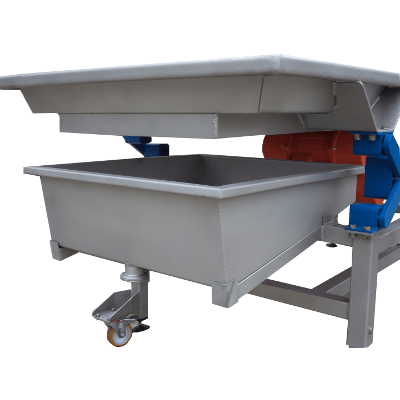

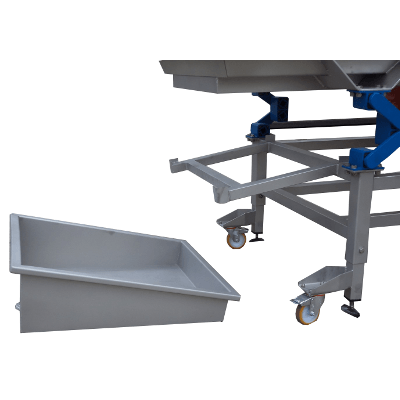

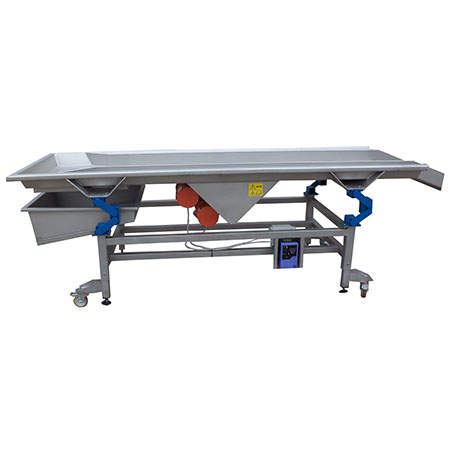

For whole grapes, made entirely in stainless steel AISI 304, with microblasted surface finish. It is suitable for installation below the destemmers REVERSE series, in order to make a selection on whole grains. The support frame is equipped with 4 castors, with telescopic legs adjustable to 3 positions, and side walls 110mm high. The width of the table is 800 mm, while the length is 3000mm. The constant feed of the product from the discharge zone is guarantee by the use of No. 2 motovibrators 0.37 kw. A removable rack with fitting DN 50, allows the elimination of liquid from the discharge zone. It comes standard complete with electrical CE and electronic speed variator.

Model Internal wide Height table Dimension Capacity Weight
818 800 1000-1180 mm 3000x1000x1150 mm 2-10 Ton / h 350 kg
