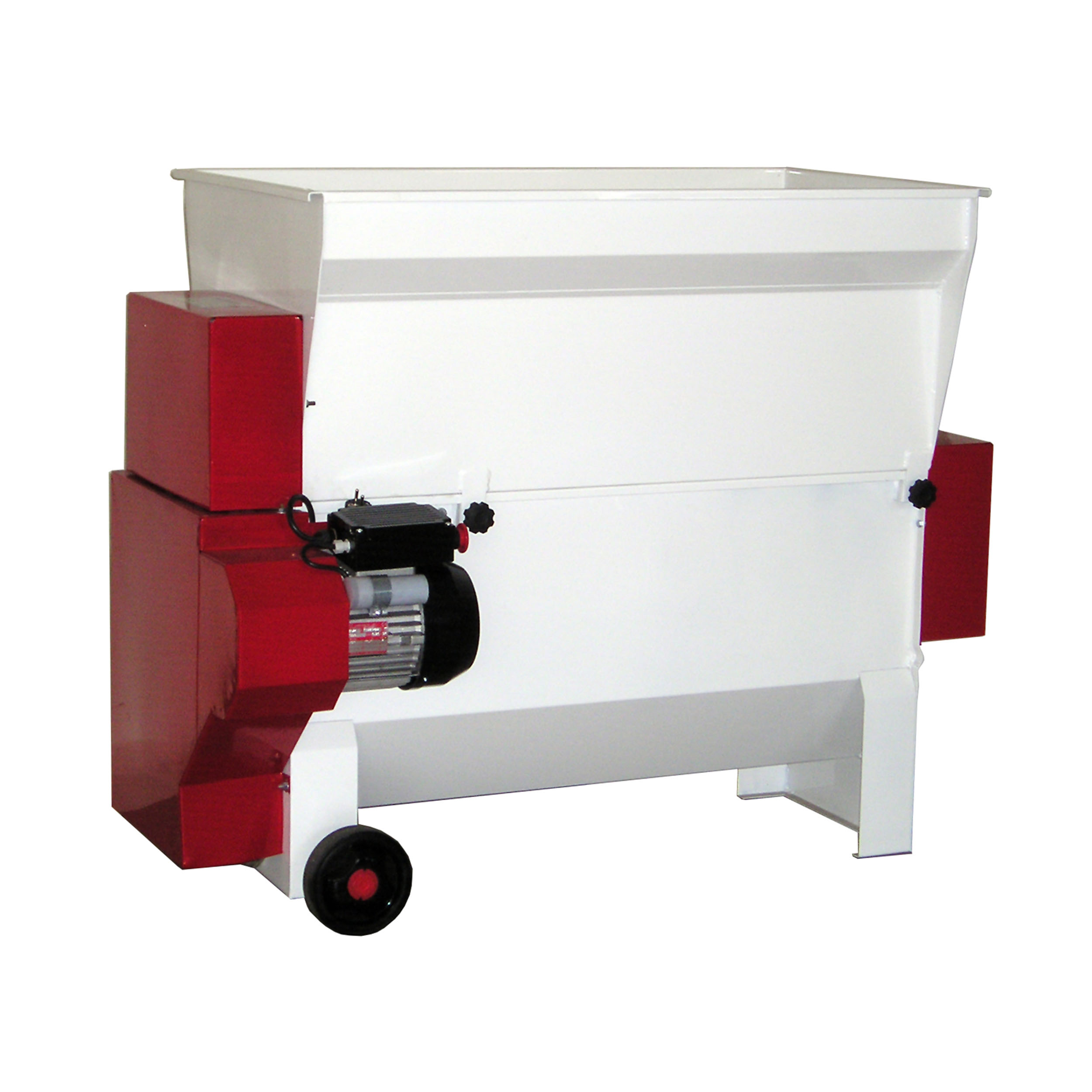

Semicentrifuge destemmer with rubber roller and centrifuge pump. The destemmer shaft is made with rubber tips, to reduce laceration of the stem, and improve the quality of the must. Available in the following models: smalted iron; completely in stainless steel. On all models the basket and the centrifugal pump are made in stainless steel. The machine is completely opened both centrally, both with extraction of the basket, allowing the carrying out of the operations of maintenance and cleaning in a simple and fast way.
Features JOLLY 20 AR:
- Capacity 2200 kg/h
- 2 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel
- Rubber roller
- Destemming shaft with rubber tips
- Safety guards in stainless steel or smalted iron
Features JOLLY 30 AR:
- Capacity 3200 kg/h
- 2,5 HP electric motor with starting capacitor
- Centrifugal pump in stainless steel
- Basket in stainless steel, professional type anti-laceration (optional)
- Rubber roller
- Destemming shaft with rubber tips

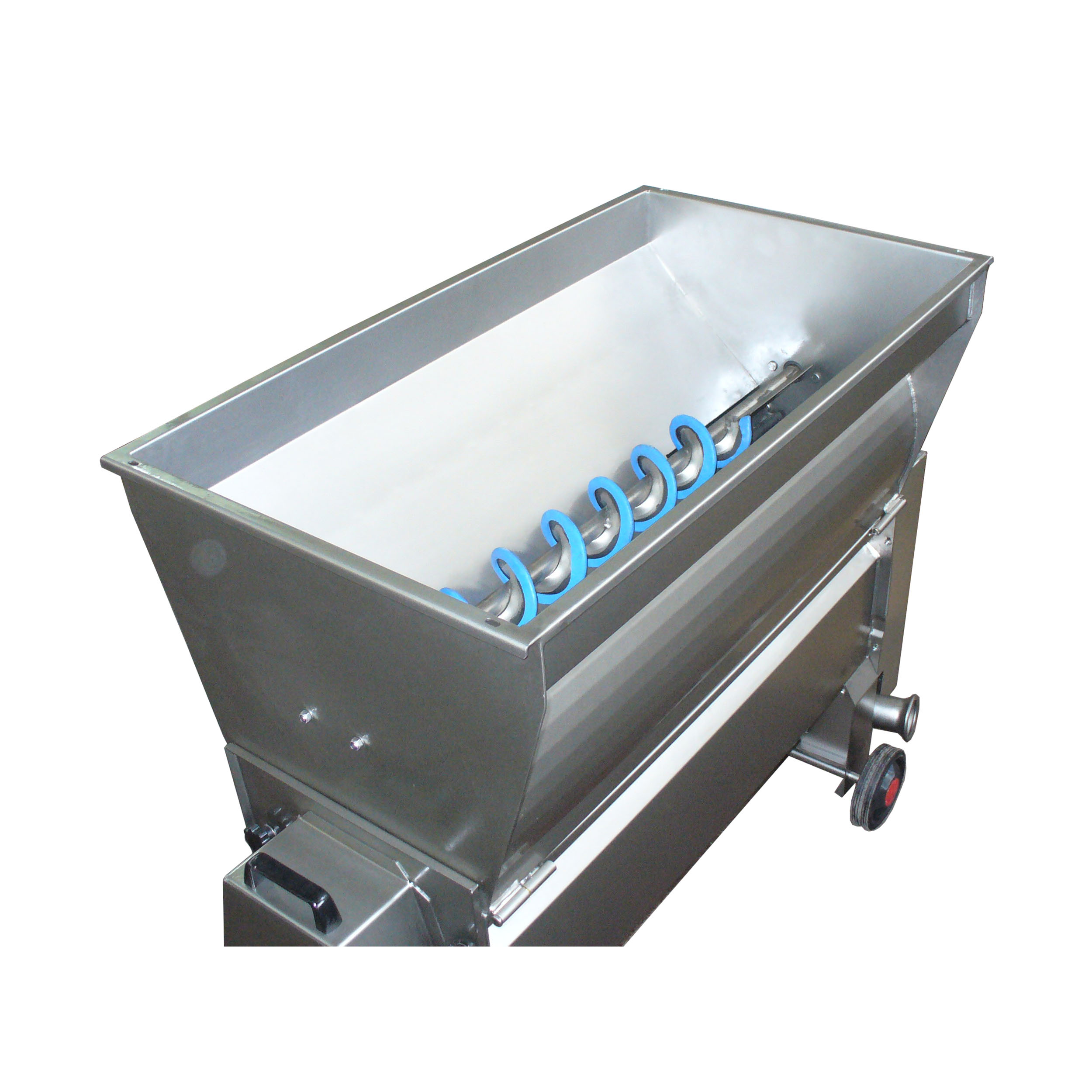

- Loading screw in rubber profile (Optional)
- Safety guards in stainless steel or smalted iron
Model | Engine (Kw) | Hourly production | Speed | Pump | Pump heads | Dimension | Weight |
JOLLY 20/AR | 2 (1,5) | 2000-2300 Kg / h | 500 RPM | 60 ร | 15 Orizz. – 5 Vert. | 1180x680x900 mm | 94 kg |
JOLLY 30/AR | 2,5 (1,8) | 3000-3300 Kg / h | 500 RPM | 60 ร | 15 Orizz. – 5 Vert. | 1280x680x900 mm | 112 kg |
