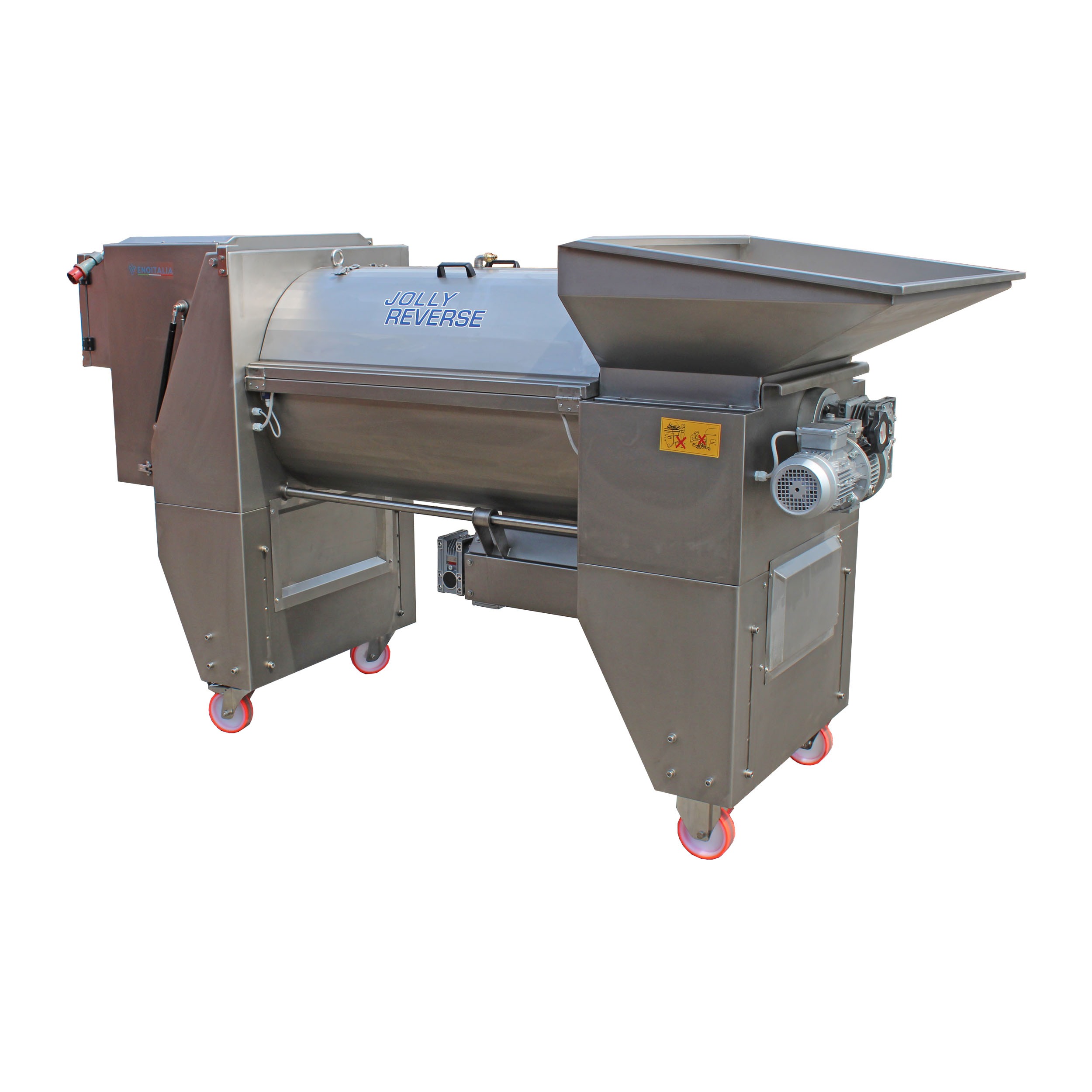

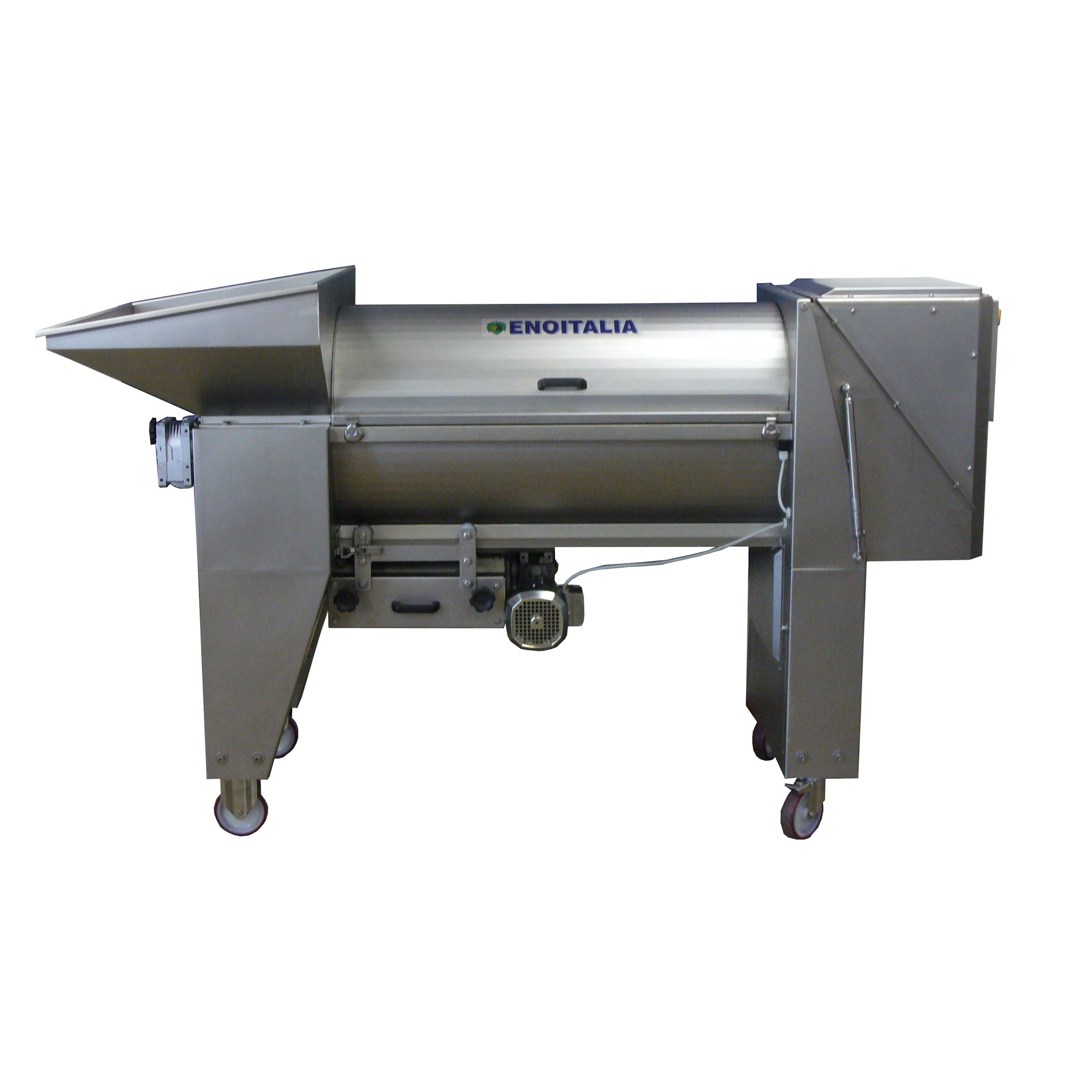

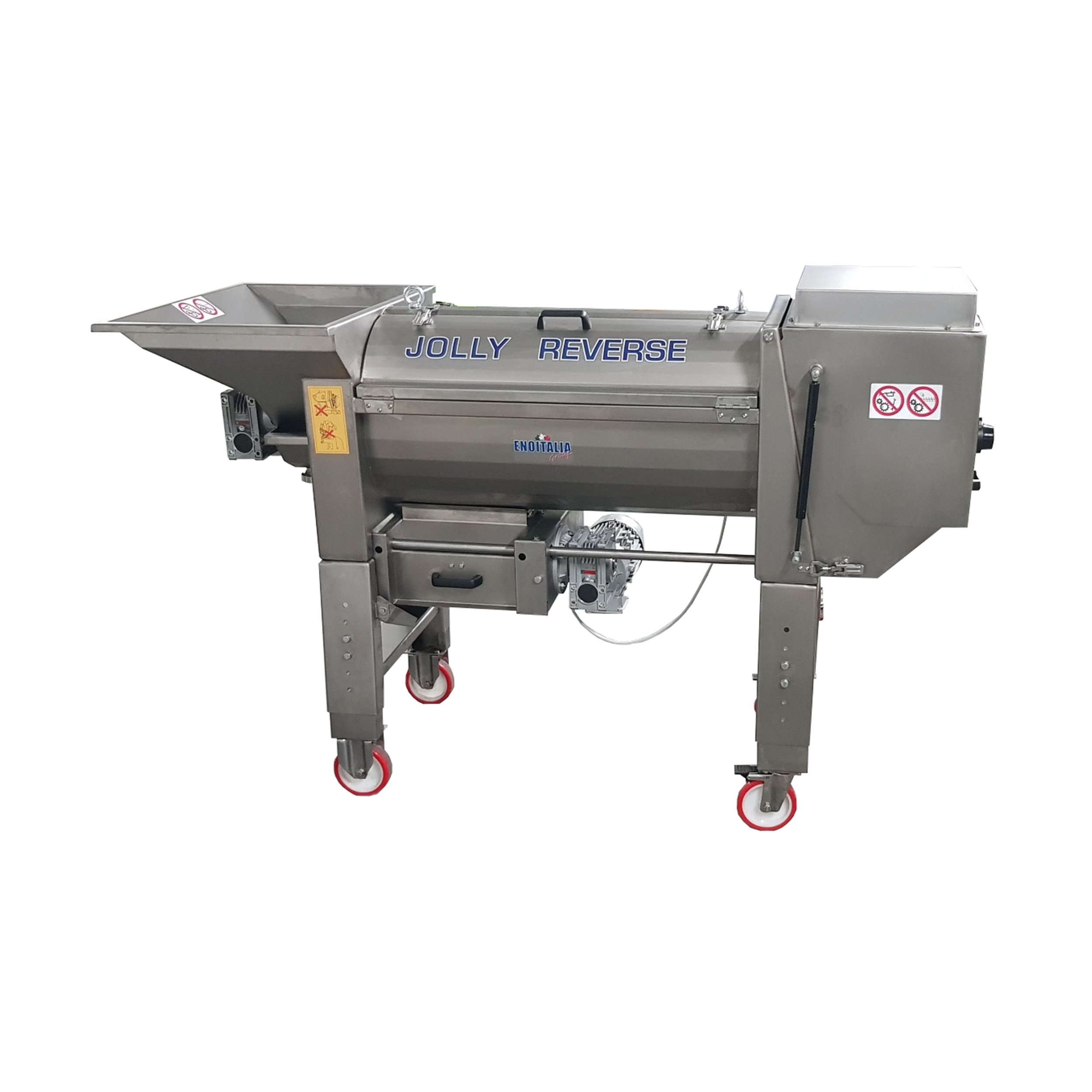

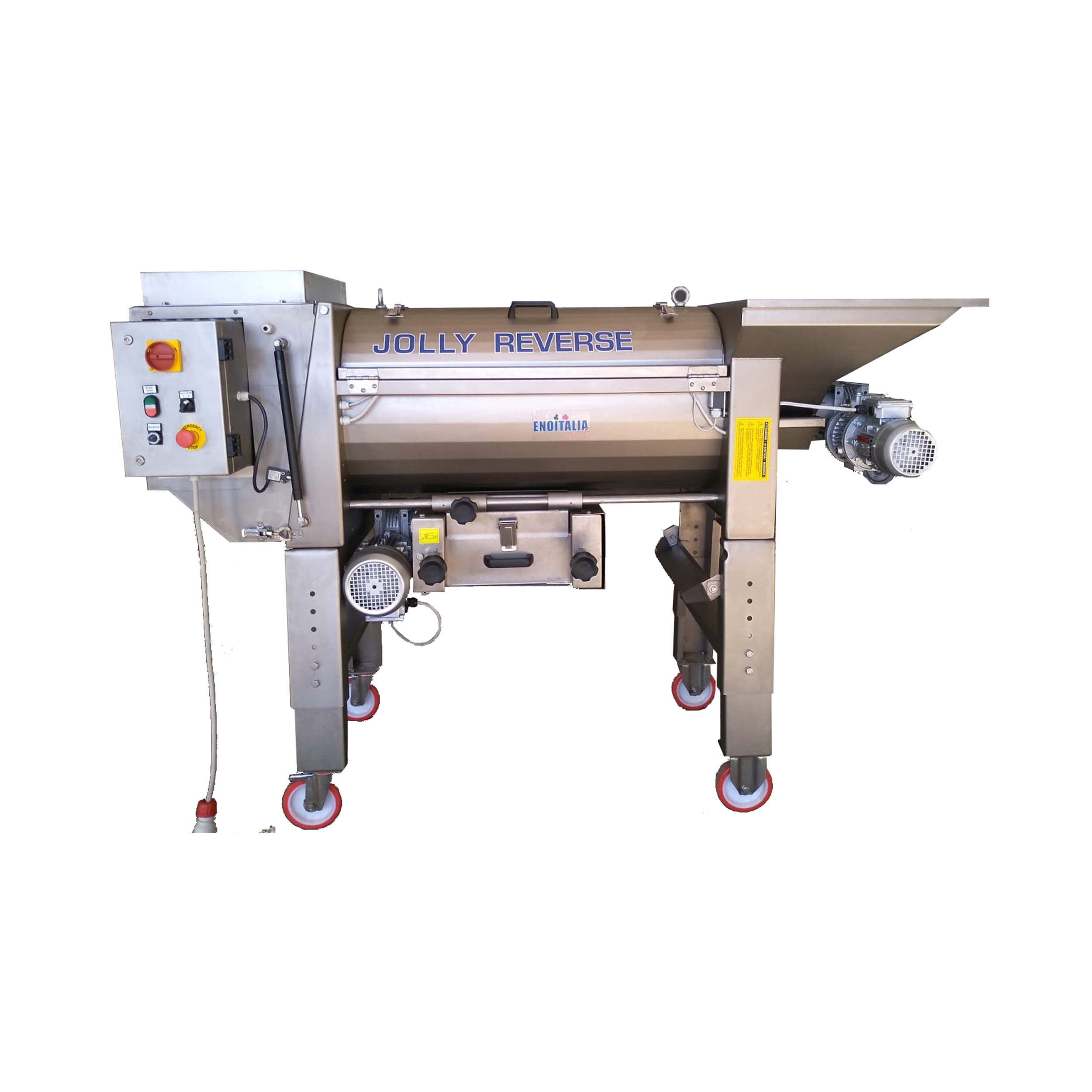

JOLLY 60-100-150 REVERSE

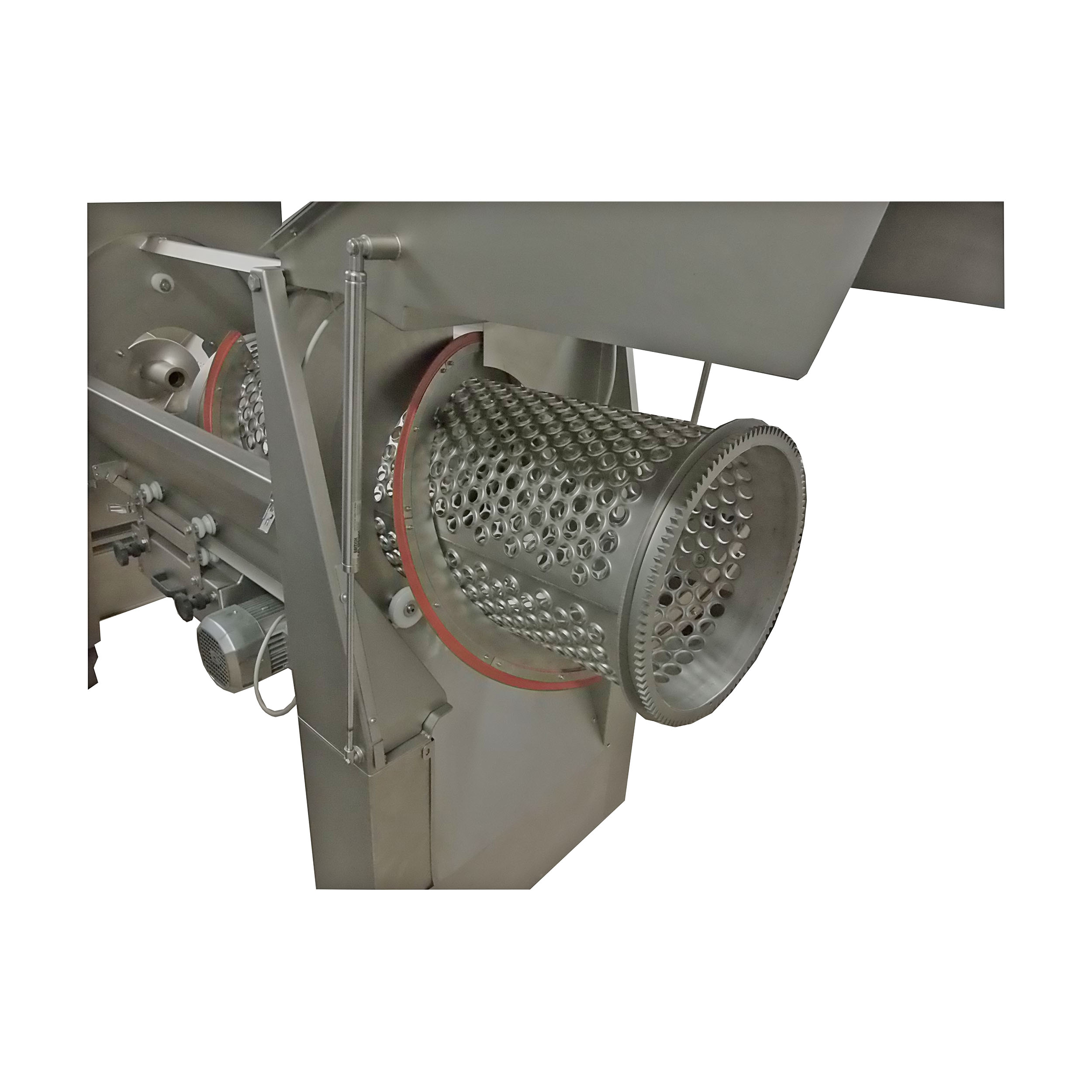

Professional destemmer-crusher ideal for quality wineries, with manual or automatic harvesting with the possibility of integrating with any line of reception and selection of grapes. The soft pressing takes place with adjustable rubber rollers, removable, and with independent motorization. Destemming basket diameter 300/400/530 mm, made with deep-drawing anti-tearing sheet. The basket is equipped with the exclusive rubber drag system.
The PVC version for the Jolly 60 model is available on request.

Telescopic support legs with height adjustment from 1530 to 1930mm. Loading hopper with independent motorization, equipped with a filter for liquid extraction. Front opening system and machinery disassembly without the need for any tools. Integrated washing systems. Possibility to buy only the destemmer.

The JOLLY 60-100-150 REVERSE is equipped with 3 motors as standard: an electronic variator for the destemmer shaft and the centrifugal net; a mechanical variable speed drive for the loading hopper; a gearmotor for the roller group.

On request it is possible to have the machine complete with automatic roller selection line integrated in the machine body, or equipped with a vibrating selection table for manual sorting.

Equipment:

  • Professional anti-tearing centrifugal basket in stainless steel or PVC (on request)
  • Pair of rubber rollers with 1.5 HP adjustable and excludable motor
  • Rubber profile screw welded to the basket
  • Loading hopper with motorized screw and 0.37 Kw speed variator
  • Electronic speed variator for net and destemmer shaft

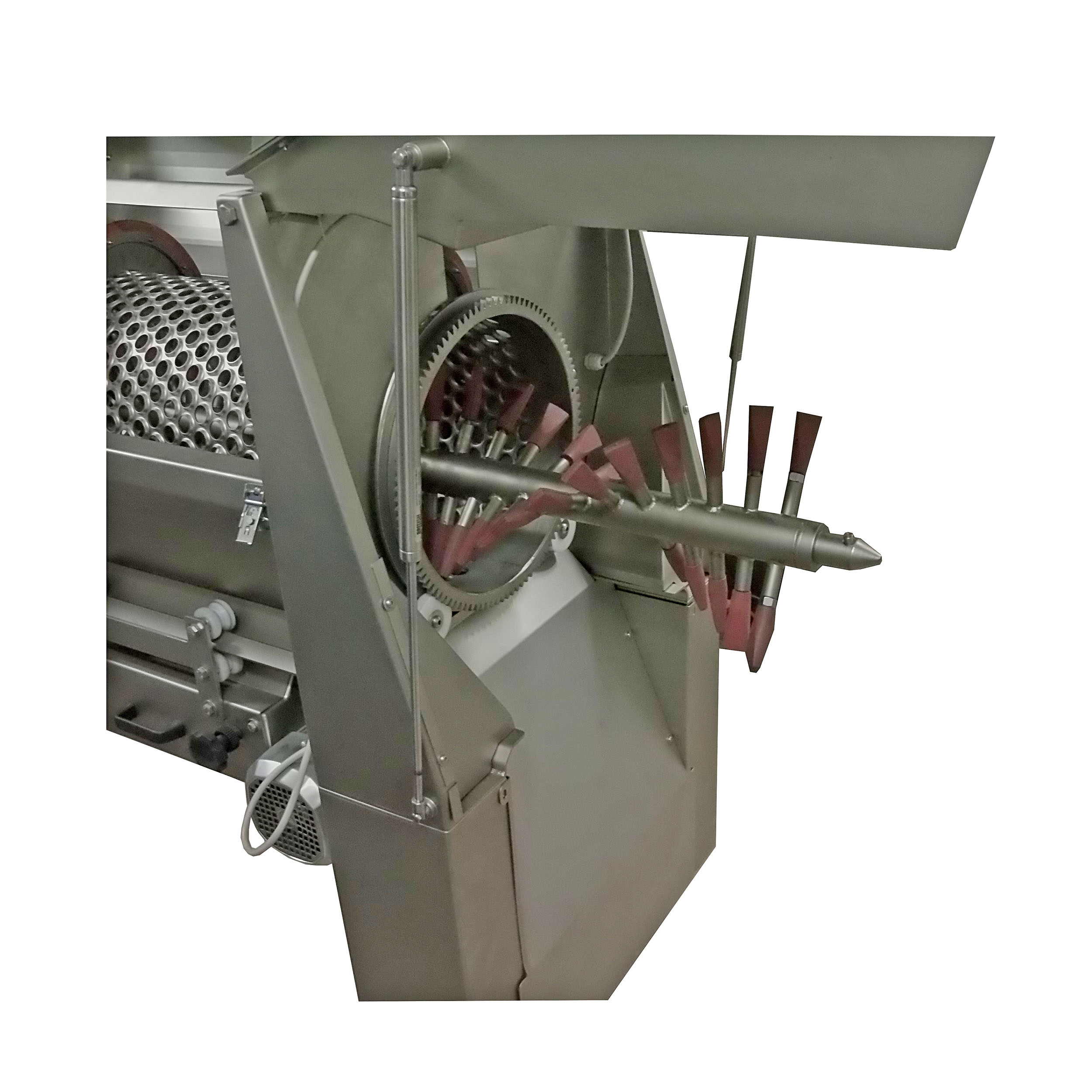

  • Destemmer shaft with adjustable rubber cylinders
  • Integrated automatic washing system
  • Liquid extraction filter from loading hopper DN 50
  • Telescopic legs
  • Rear opening and extraction of the net and the destemmer shaft
  • Side protections in stainless steel

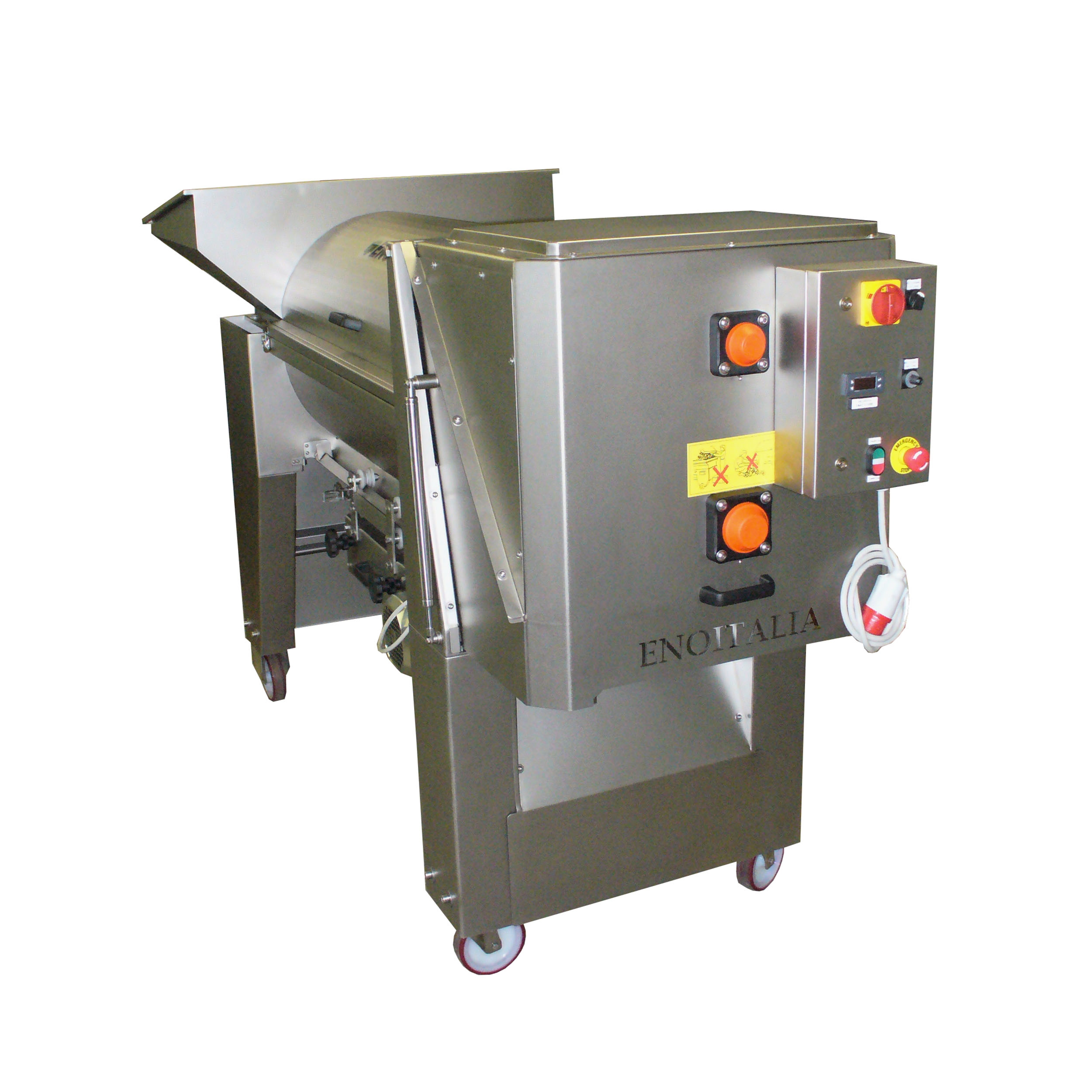

  • Stainless steel control panel with emergency stop
