Screw elevators

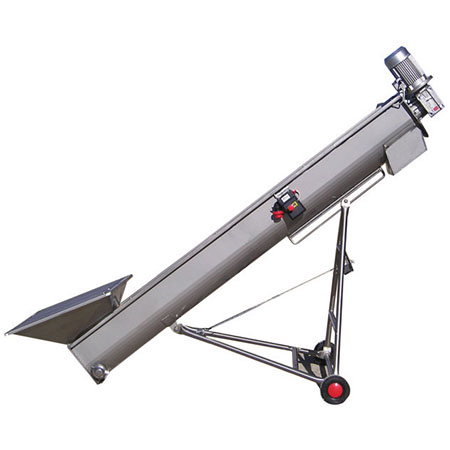

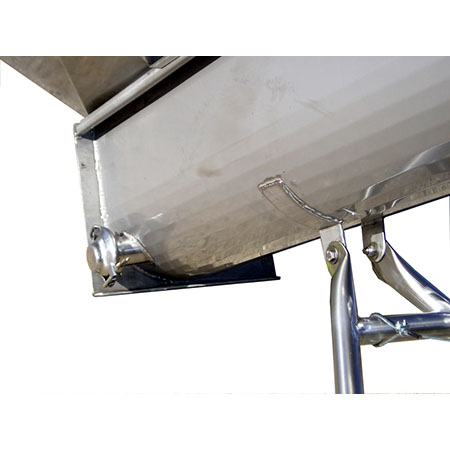

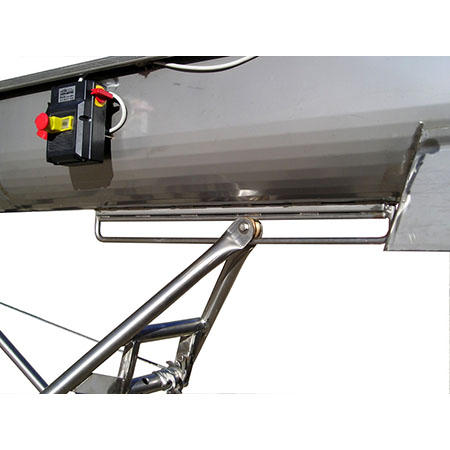

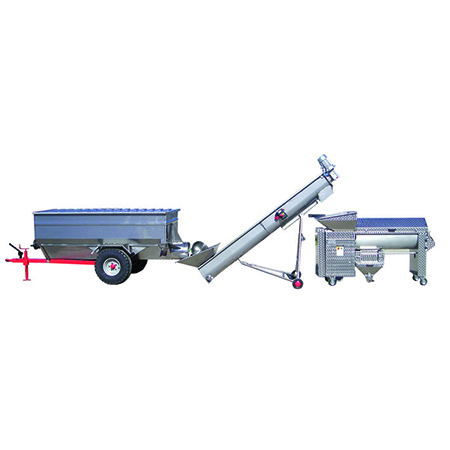

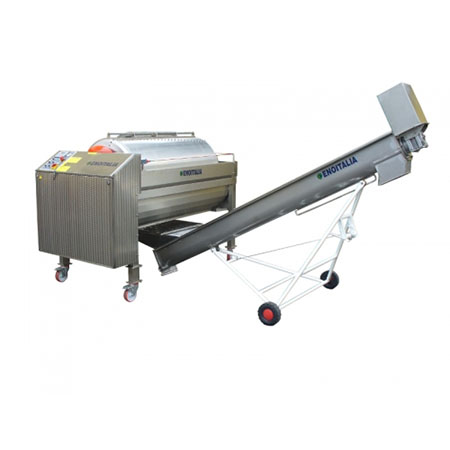

Screw elevator made entirely of stainless steel, allows transport within the whole grape stemmer the transport of the marc to the press, and the evacuation of the stalks from the discharge area of the destemmer. The low speed of rotation and the ability to equip it with a variable speed drive, allow a non-aggressive handling of the grapes. It comes standard with a trolley enamelled sheet adjustable in height. Upon request, the trolley is achievable in stainless steel. Available in standard 3 meter, can be made in longer lengths. Engine of 1.5 kW single-phase/three-phase with emergency stop EC. Loading hopper with pump connection for liquid drain.

Model Lenght Engine Hp (Kw) Hopper dimension Loading lenght Unloading lenght Capacity Weight
U200-3 3000 mm 2(1,5) 650x720x900 mm 710/480 mm 1600/2000 mm 2-10 Ton/h 90 Kg
U200-4 4000 mm 2(1,5) 650x720x900 mm 710/480 mm 1900/2500 mm 2-10 Ton/h 130 Kg
