Rubber impeller pumps with inverter EURO MVE

SKU: POMPE INVERTER EURO MVE Categories: , Tags: , , ,

Description

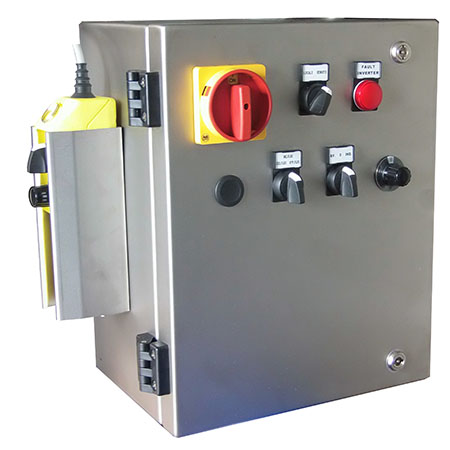

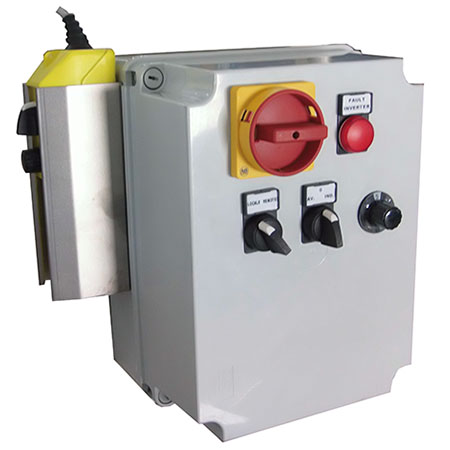

Self-priming pump made in stainless steel AISI 304, connected to an electronic system equipped with a frequency INVERTER, that allows to change the speed of the pump from 0 to 1000 revolutions/minute (default maximum speed is set to 780rpm). The electrical panel is provided separate from the motor, which is connected with connectors , to ensure the security of electronic components and facilitate cleaning and maintenance. Standard on all models are provided with a cord remote control  15 meters, with the possibility of change the speed, change the rotation and off the pump.

The unique feature of our pumps is the use of electric motors selfventileted: allows the pump to stop at 0 rpm, allows prolonged use at low speeds, without overheating and breakage to the electric motor, and without the need to equip the machine for further mechanical reduction systems.

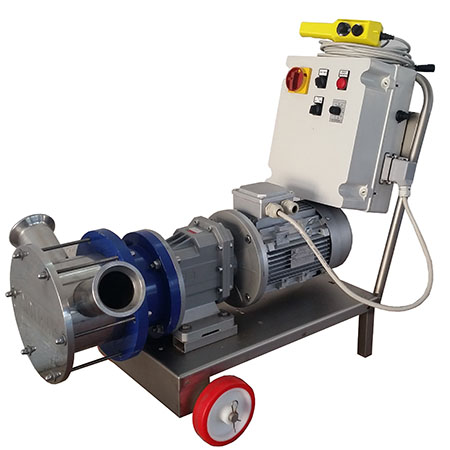

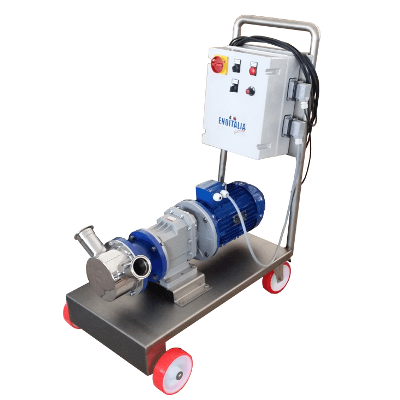

On request we can provide the trolley with pneumatic wheels.

Options available:

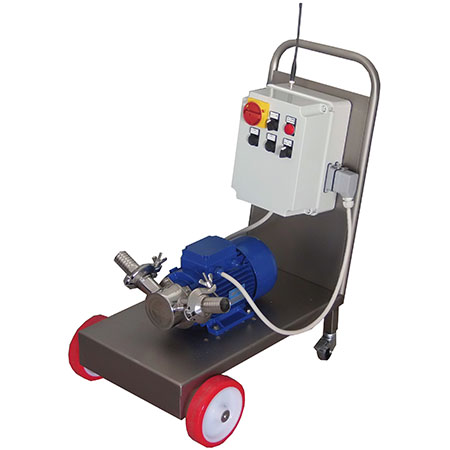

  • Radio control from 150mt
  • Dry protection, with a mechanical sensor
  • 24V output for connection to external pressure or level sensors
  • compensation tank in stainless steel complete with non-return valve
  • Timer programming
  • Stainless steel control panel

Model

Engine Inverter HP RPM Capacity lt/h Dimension

Weight

EURO 30

TF 2 (1,5) KW 0 → 1000* 0 → 5200 740x400x650 mm  kg 32

EURO 30

MF 2 (1,5) KW 0 → 1000* 1 → 5200 740x400x650 mm

 kg 32

EURO 40

TF 3 (2,2) KW 0 → 1000* 0 → 11100 1020x560x900 mm

kg 36

EURO 40 MF 3 (2,2) KW 0 → 1000* 1 → 11100 1020x560x900 mm

kg 36

EURO 50

TF 5,5 (4) KW 0 → 1000* 0 → 14500 1020x560x900 mm

 kg 48

EURO 50

MF 5,5 (4) KW 0 → 1000* 0 → 14500 1020x560x900 mm kg 48

EURO 60

TF 5,5 (4) KW 0 → 1000* 0 → 24000 1020x590x900 mm

kg 58

EURO 60 MF 5,5 (4) KW 0 → 1000* 0 → 24000 1020x590x900 mm

kg 58

EURO 80 TF 5,5 (4) KW 50 → 600 4000 → 50000 1020x590x900 mm

kg 92

* valore di default: impostato su 780 rpm
