Impeller pumps rubber coaxial EURO

SKU: POMPE COASSIALI EURO Categories: , Tags: , ,

Description

Volumetric pumps in stainless steel AISI 304 with rubber impeller, applied directly to the electric motor, and seal chamber separate by the motor flange. All pumps are available without switch or with invertor. Single-phase models are supplied with an electric motor on board and start capacitor to ensure trouble-free operation at the start and in the change of direction. On three phase models the control panel is available standard on board of the motor, or with a CE type, with timer, dry-stop, 24V output, remote control.

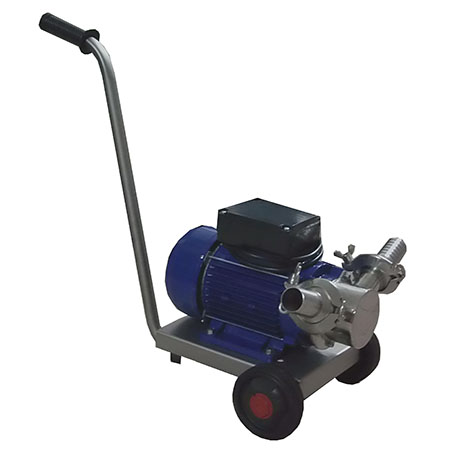

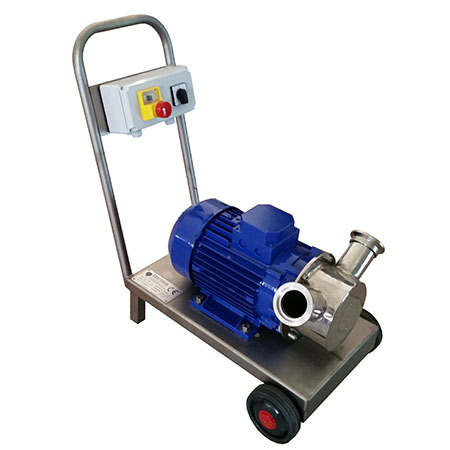

The stainless steel trolley is available on all models.

The models available are the following:



Model Engine Hp Speed Rpm Capacity lt/h Dimension Weight
EURO 20 MF 0,5 (0,37) 1 900 1000 800x310x470 Kg 15
EURO 20 TF 0,5 (0,37) 1 900 1000 800x310x470 Kg 15
EURO 30 TF 1,5 (1,2) 1 900 4500 800x310x470 Kg 19
EURO 30 MF 1,5 (1,2) 1 900 4500 800x310x470 Kg 19
EURO 40 TF 2 (1,5) 1 900 9300 800x310x470 Kg 21
EURO 40 MF 2 (1,5) 1 900 9300 800x310x470 Kg 21
EURO 40 TF 1,5 (1,2) 1 700 7200 800x310x470 Kg 23
EURO 50 TF 2 (1,5) 1 700 10200 900x360x530 Kg 27
EURO 60 TF 3 (2,2) 1 700 21000 900x360x530

Kg 35

EURO 80 TF 5,5 (4) 1 600 50000 1020x590x900 Kg 85
