Standard Features
- Stainless steel construction with food-grade rubber-coated lobes
- Capacity with liquid 3200 litres/hour at 450 RPM and 7000 litres/hour at RPM
- Capacity with destemmed grapes 21000 litres/hour and 5000 litres/hour minimum
- Capacity with fermented grapes 1500 litres/hour
- Maximum speed 450 RPM, minimum 40 RPM
- Maximum pressure 4.5 bar – 0.9 at suction
- DIN80
- Radio control as standard
- Automatic control with touchscreen and PLC
- Automatic work programme with pressure set point; pump work with local/remote control; pump stop after a working time Programme with loading hopper

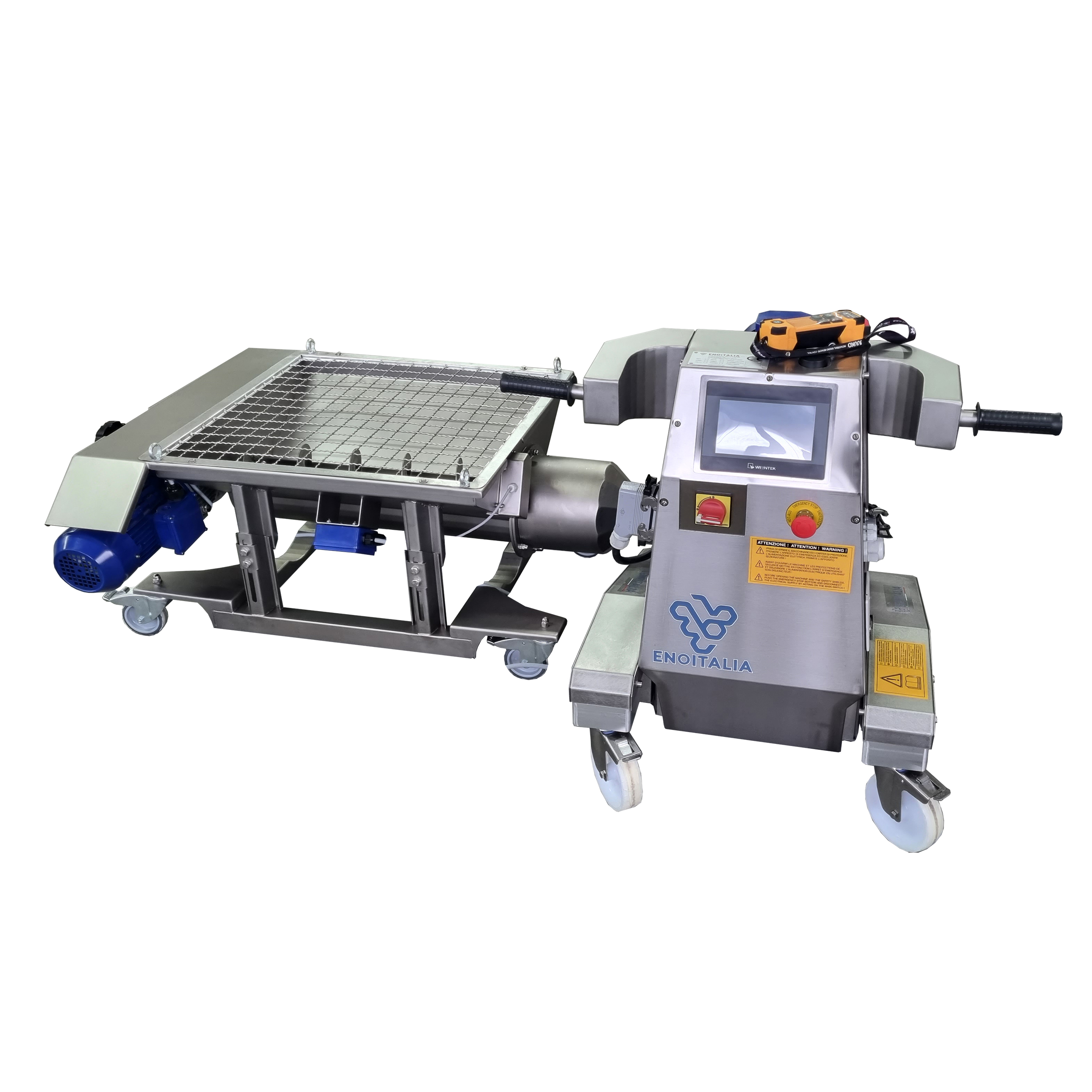

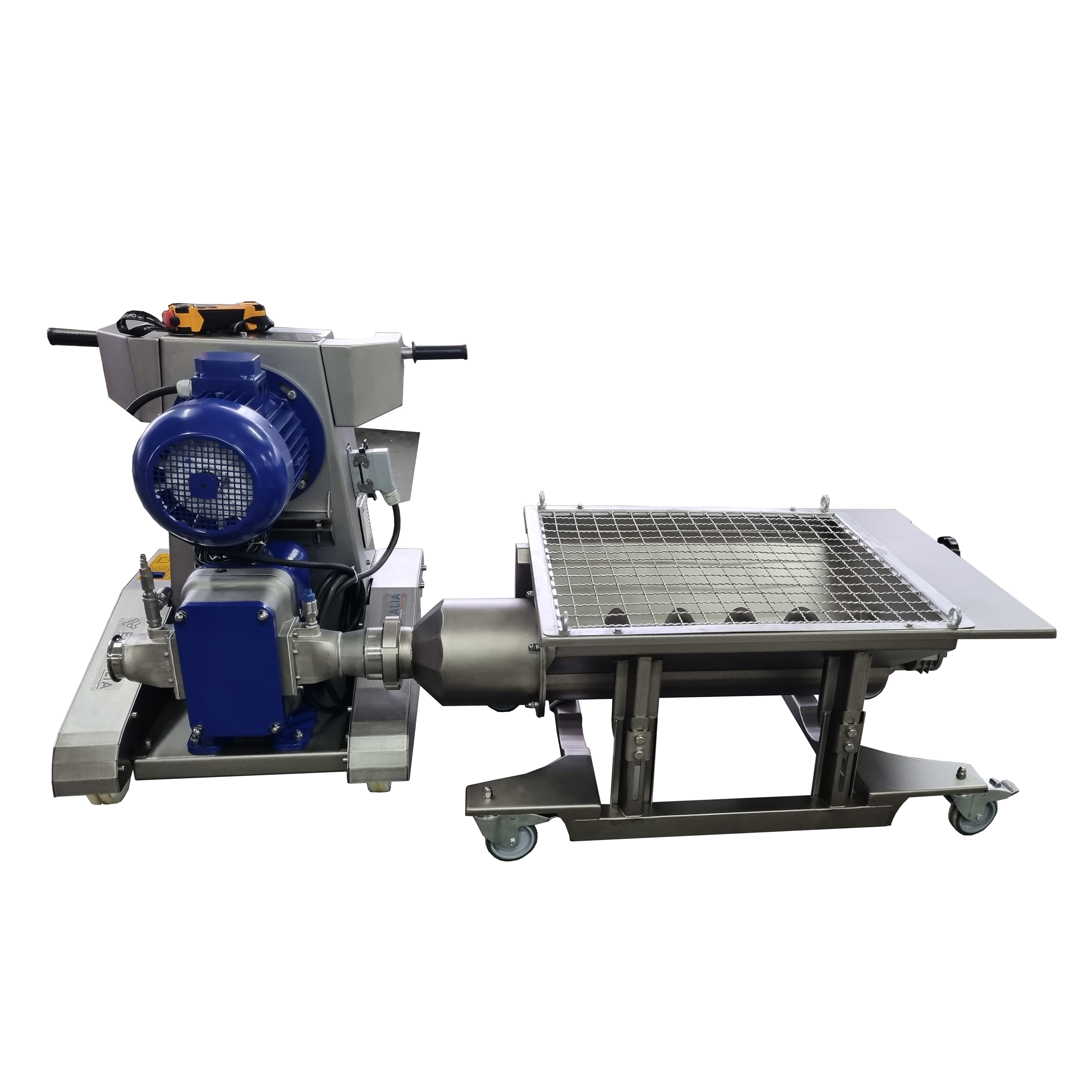

- Stainless steel loading hopper with automatic probes, variable speed drive, anti-rotation button. Connection with DIN100 coupling
- 2 automatic pressure switches for pump inlet and outlet regulation
- Power 6 Kw three-phase 400V – 50Hz / 220V – 60Hz
| Model | Engine | Hourly Production | PRODUCTION (destemmed grapes) | PRODUCTION (fermented grapes) | Speed | Fittings | Dimension mm | Weight |
| 6051 | 5,5 Kw | 32.000 lt/h | --- | --- | 40-450 RPM | DIN80 | 920X860X150 mm | 200 Kg |
| 6152 | 6,2 Kw | --- | 21.000 kg | 15.000 kg | 40-450 RPM | DIN80 | 1200x1900x1050 mm | 380 Kg |
