Elliptical rotor pump

SKU 6000/6001/6002 Categorie ,

Stainless steel elliptical rotor pump. Equipped with a large loading hopper, it is suitable for pumping whole grapes, destemmed, fermented marc. Grapes are transferred by pressure and not by centrifugal force, avoiding the crushing of the peels and the grapes seeds. The stainless steel trolley with anti-vibration system makes it easy to move and install the machine. As standard it is equipped with an outlet open cone, inclined hopper, and removable control panel. Available in two models: Gamma 80 and Gamma 180 with different performance and range. In cases where a prevalence and /or high discharge distance is required, it is advisable to install a compression vessel. As standard, the pumps are supplied with a connection fitting DIN 80 and 100, complete with stainless steel hose connection.

Model

Engine kw

Capacity kg/h

Speed rpm

Weight

Unloading height

Unloading distance

Connection fitting

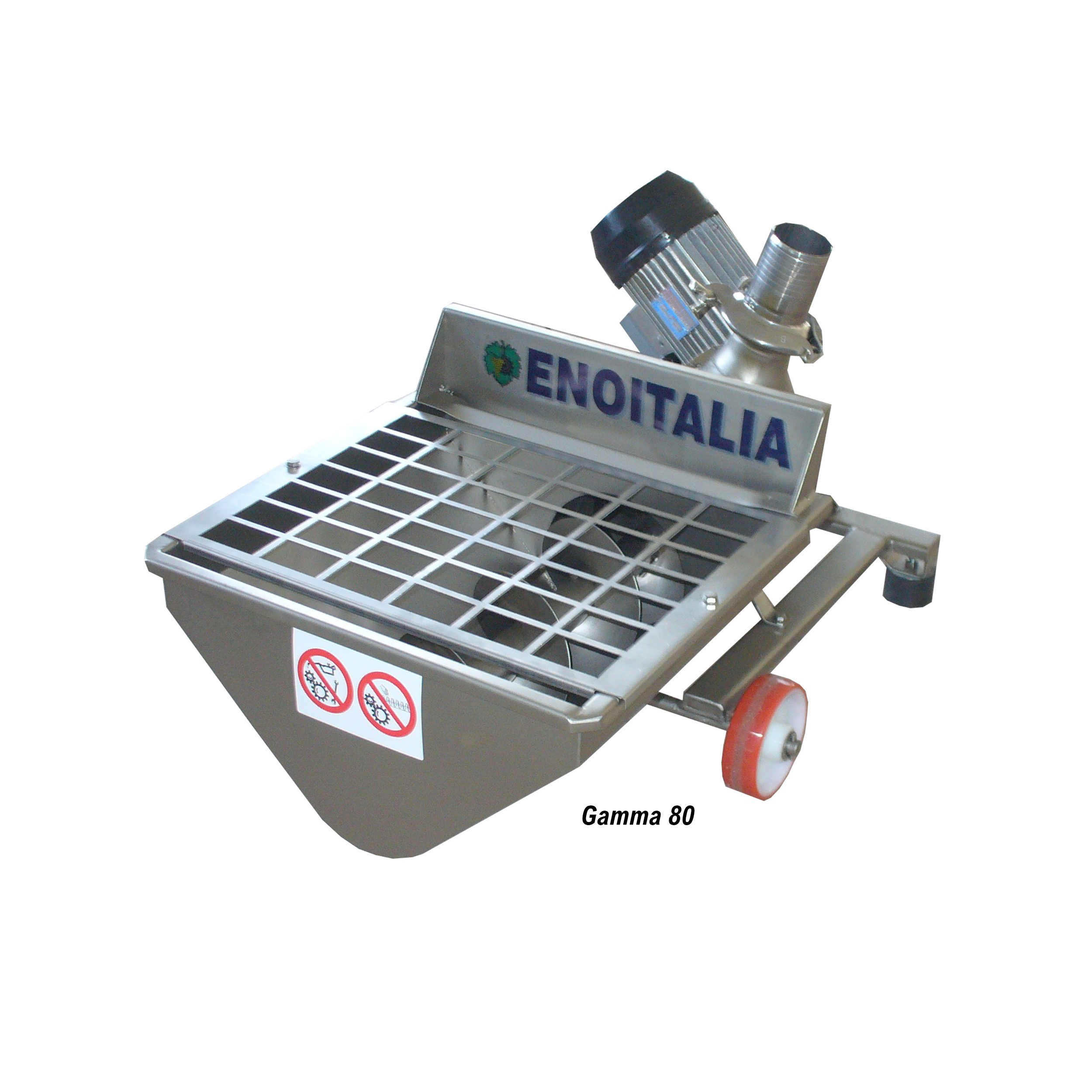

Gamma 80

2 (1,5)

6000-8000

47/58

100 kg

3 mt

10 mt

DIN 80

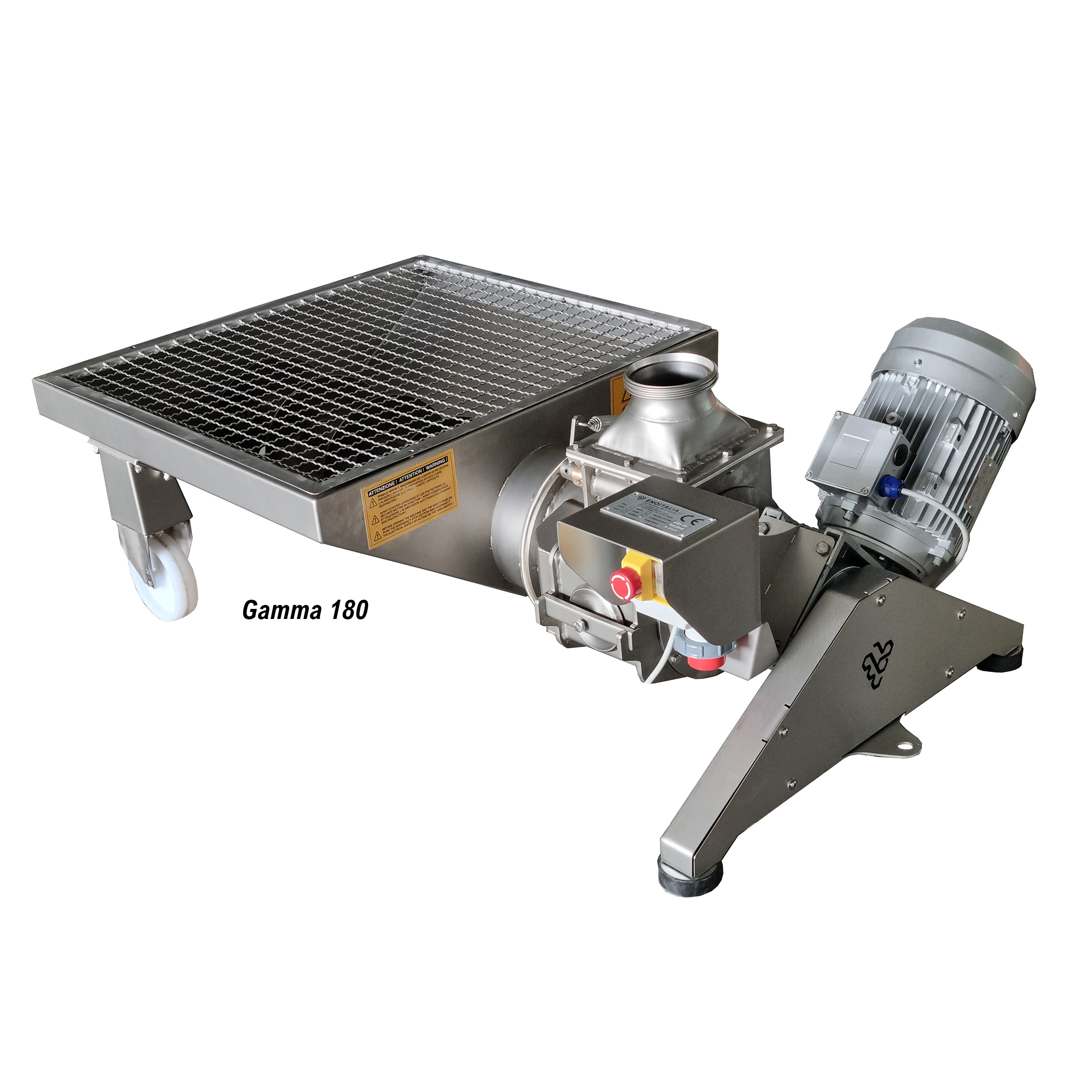

Gamma 180

5,5 (4)

12000-15000

47/58

230 kg

5 mt

30 mt

DIN 100

Gamma 180

7,5 (5,5)

12000-15000

47/58

240 kg

8 mt

40 mt

DIN 100
