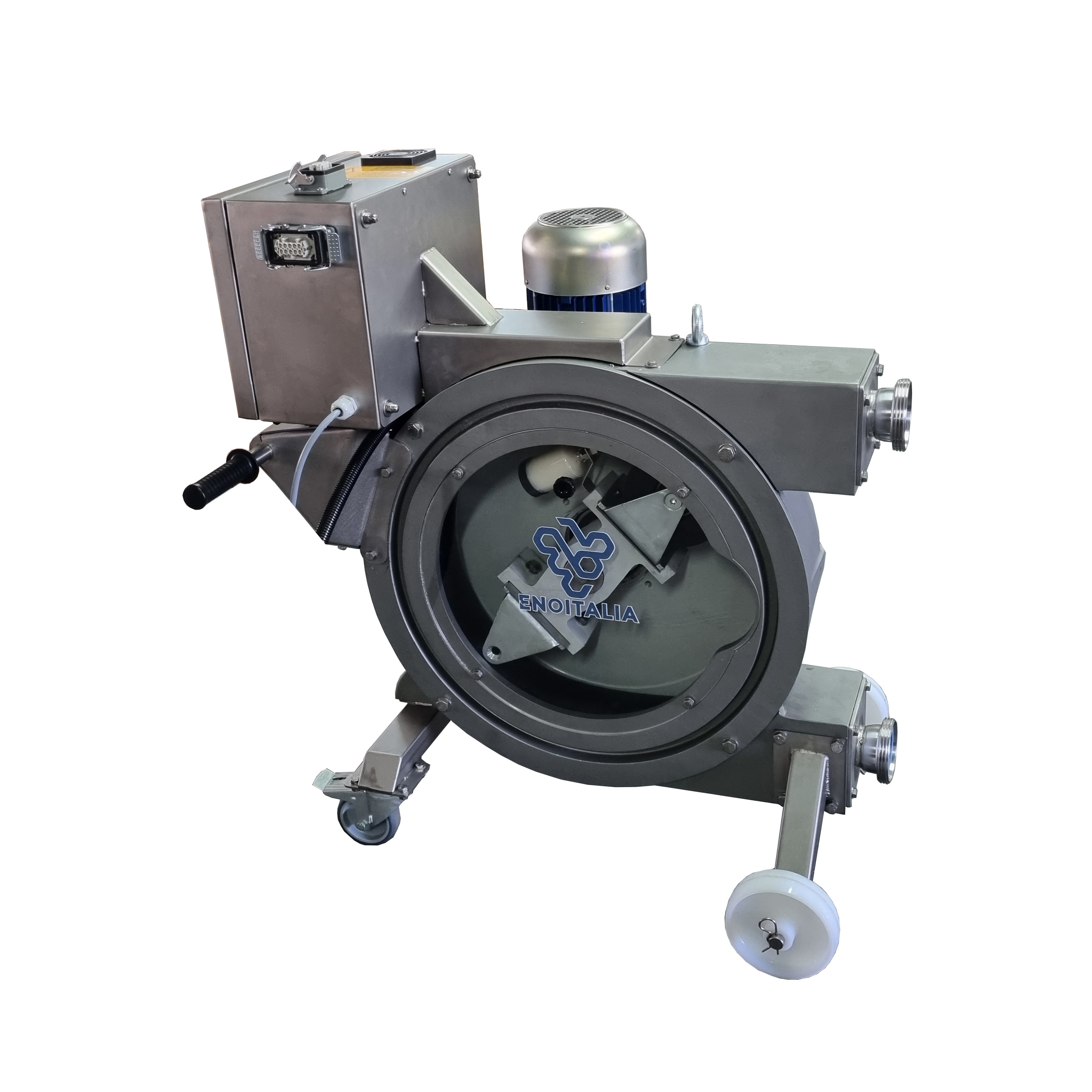

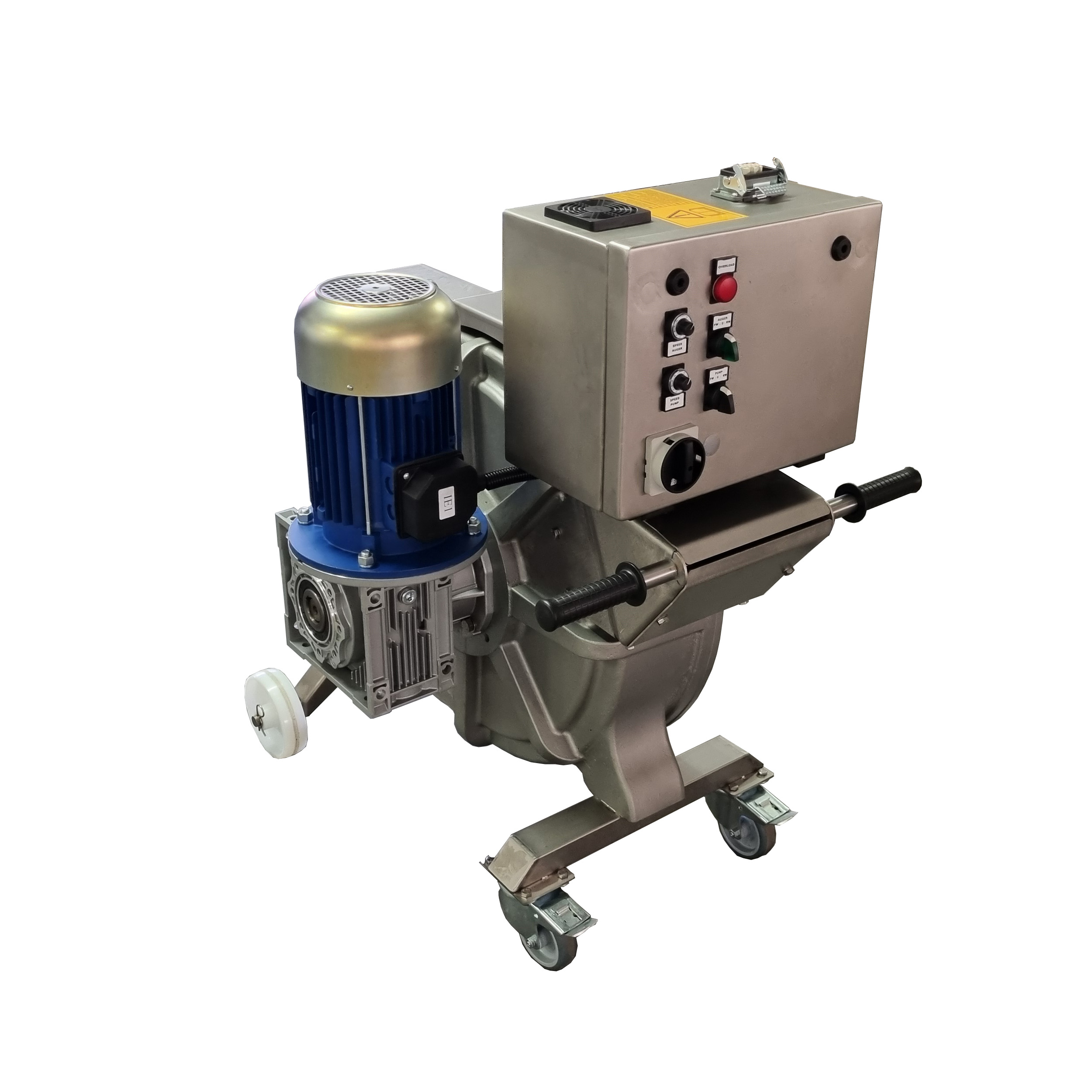

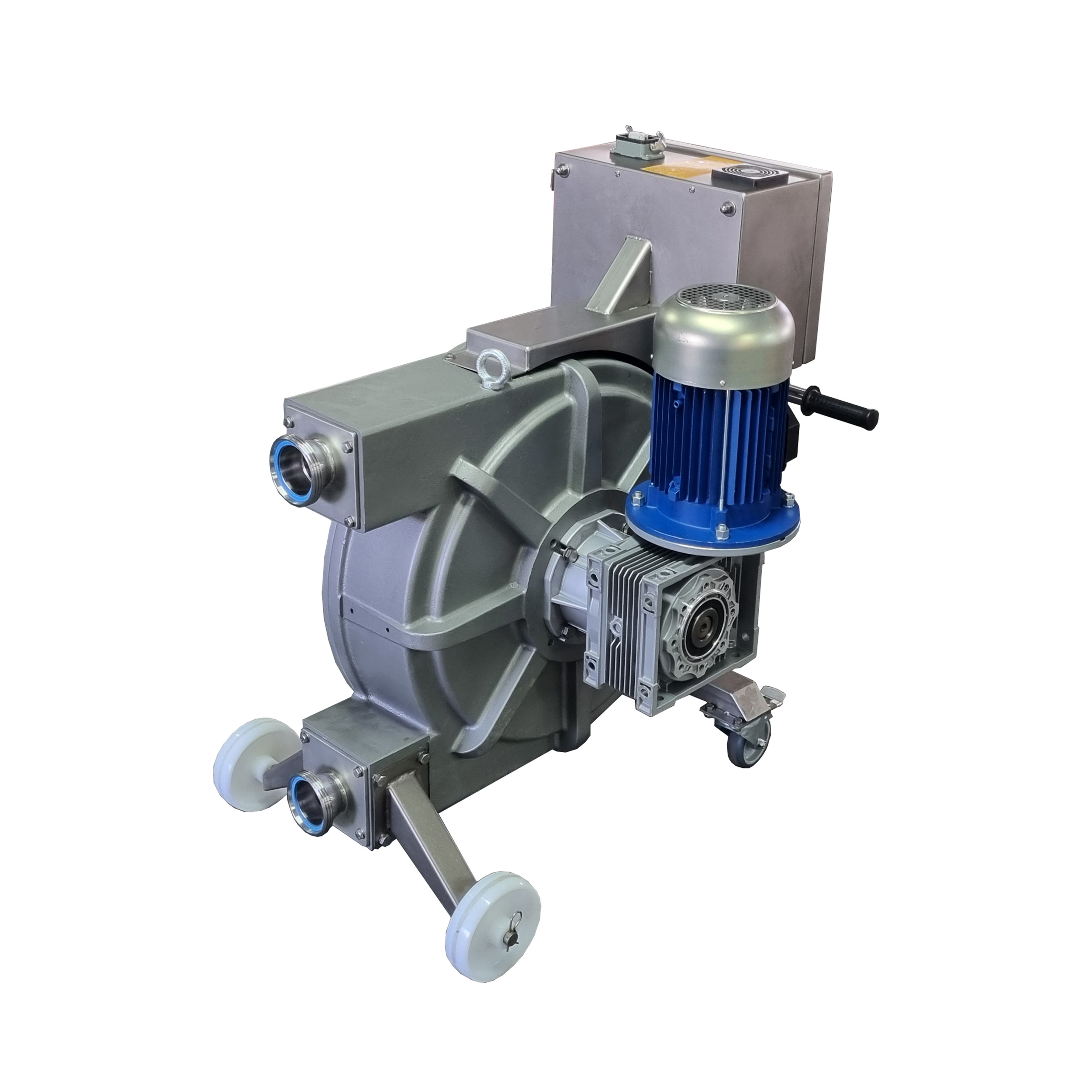

Peristaltic pumps without hopper

Home/Pumps/Peristaltic pumps without hopper

Peristaltic pumps without hopper

SKU: 6306/6307/6308/6309 Category: Tags: , ,

Description

The peristaltic pump, available with and without hopper, is the most professional solution for the cellar. It is suitable for the transport of destemmed grapes and fermented grapes, in addition to being used in the filling of small containers (barrels). Standard comes with two compensation chamber and pressure automatic sensor (also with hopper type). The engine is controlled by an electronic inverter, available with remote radio control, which can handle the speed and rotation of the pump. The loading hopper is made of stainless steel, equipped with separate motorization, and transport wheels. The connection to the pump is a DIN fitting.

Model

Engine kwHourly ProductionWeightDimension mmConnection fitting

PP702

1,570 Hl/h125 kg1035x520x1060

DIN50

PP703

3,00120 Hl/h220 kg1165x550x1185

DIN65

PP705

4,00200 Hl/h310 kg1365x715x1470

DIN80

PP7045,50260 Hl/h360 kg1470x725x1520

DIN80
