Vacuum filler

SKU 9380 Categorie ,

Designed entirely in stainless steel with high quality components appropiate for intensive use. The machine is equipped with an electrical vacuum system inside the containers, in order to create a delicate aspiration of the liquid to be filled without the use of pumps and oxidation problems.

The machine is designed to keep the air intake and product priming circuits separate, allowing precise and continuous aspirations over time.

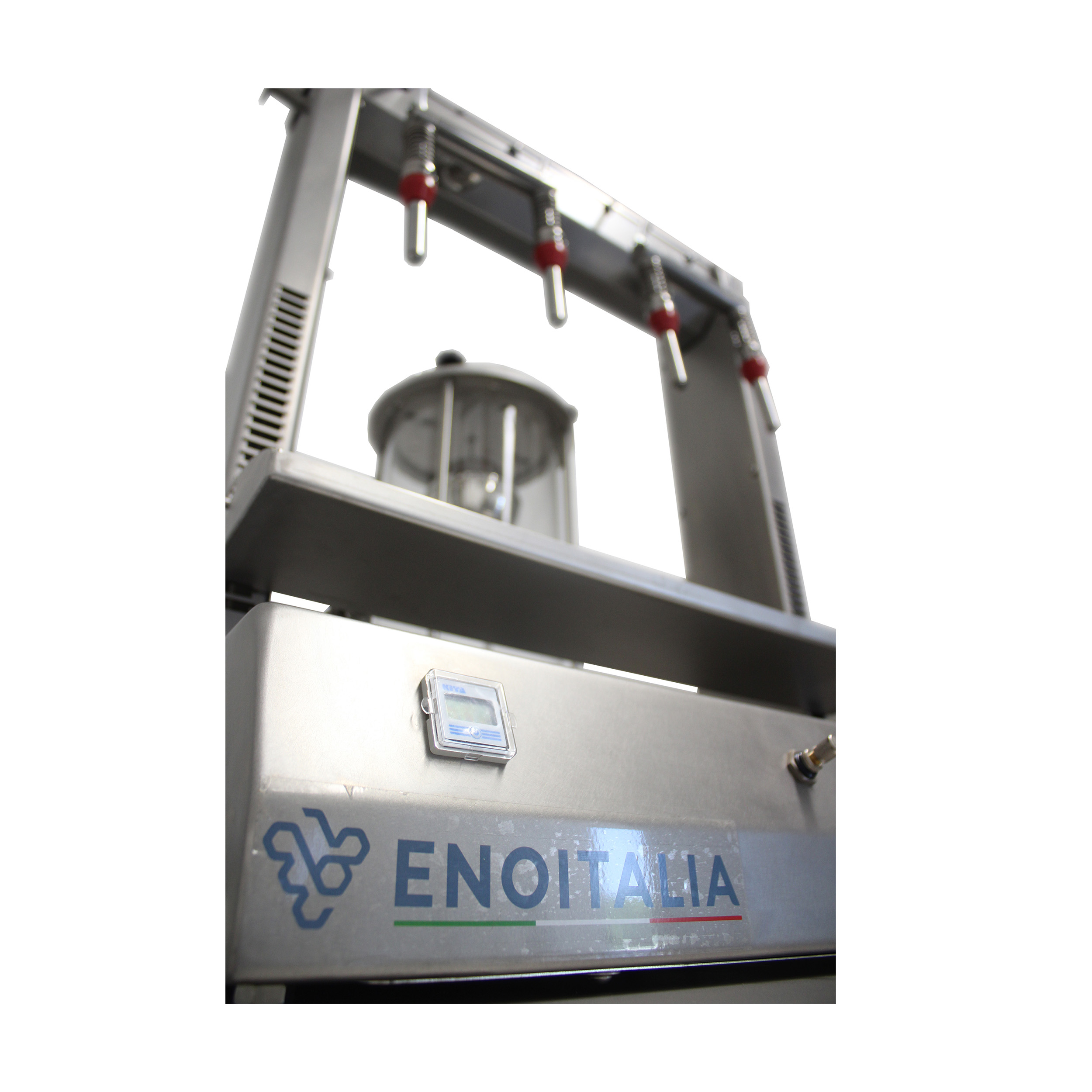

The filling speed is easily adjustable by means of the special digital display and the vacuum regulator: in a few moments it is possible to set the desired vacuum level for each product, precisely identifying the value to be set on the machine.

Large storage tank equipped with stainless steel float, automatic shut-off system in case of overflow, stainless steel exhaust valve.

Electrical safety system with electrical protection to prevent unwanted re-start of the machine. Table top for bottles adjustable in height, with adjustable inclination to facilitate filling operations. Filling level adjustable quickly with the appropriate stainless steel ferrule and the possibility to select taper gaskets of various sizes, or flat for satin fills.

Available mignon kit model in stainless steel with 2 heads; minimum capacity 5ml.

Available with extention legs model in stainless steel for filling bottles higher than 330mm.

Standard equipment:

  • digital adjustment display
  • 4 pivots Ø 15 mm with level adjustment
  • pipes in food material with quick couplings for immediate emptying
  • attacks ?? 1.5 “clamp for product aspiration and circuit emptying, DIN 15 connections for emptying filling nozzles
  • adjustable support surface
  • electrical system with block disconnector
  • adjustable feet
  • lifting handles

Available options:

  • stainless steel trolley
  • semi-automatic system for cleaning the nippers
  • increased conical gaskets, flat gaskets.
Model N° filling heads Diam. filling heads Formats Capacity Dimension Watt power Weight
9380 4 15 mm 0,2 a 5 lt 500 lt/h 600x800x1100 mm 20 220V 50/60 Hz 40Kg
