Destoner pulper

Destoner pulper

SKU: 801/802/803 Categories: , Tags: ,

Description

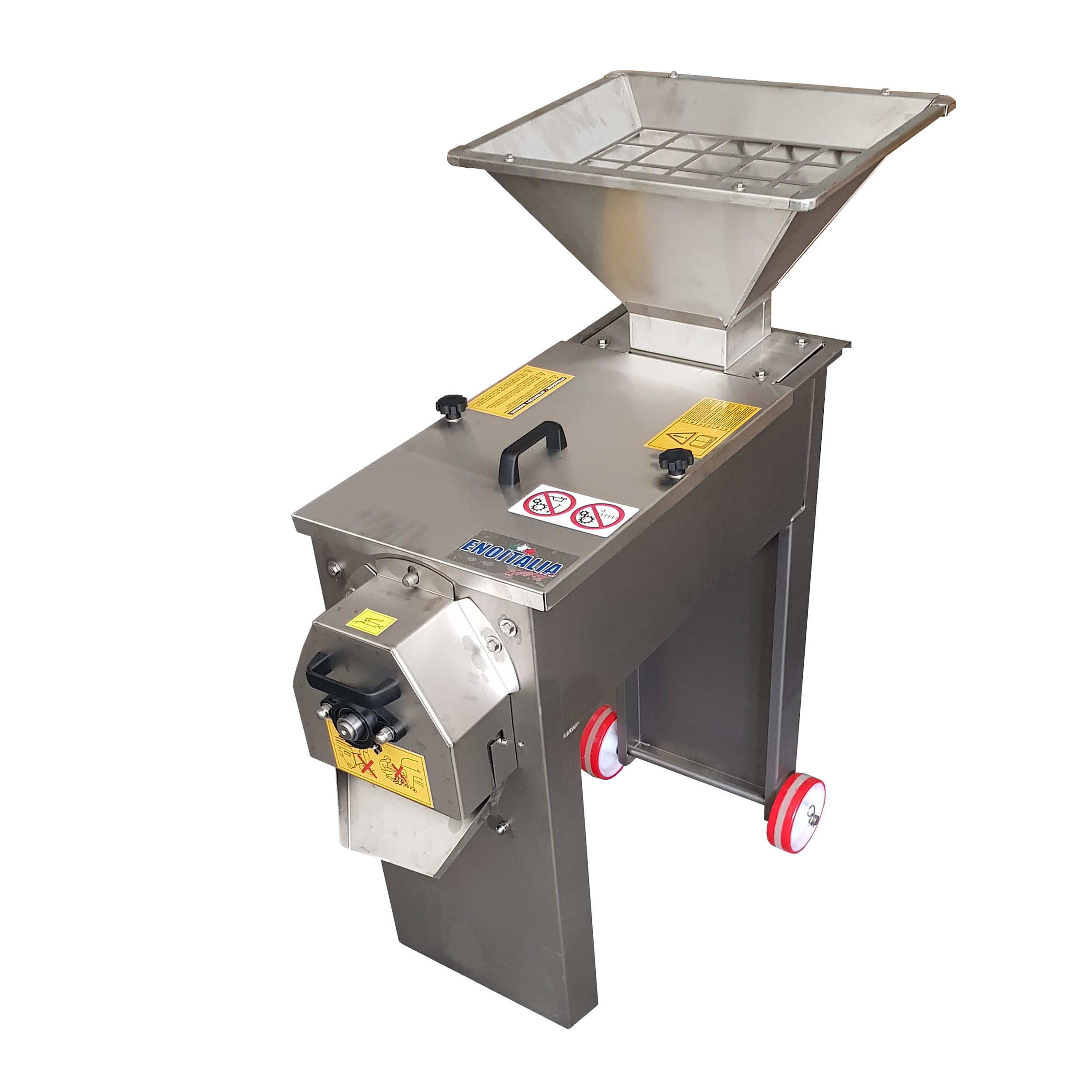

DELTA ZERO

Destoner-pulper made entirely of AISI 304 stainless steel, suitable for small productions. The machine realizes a complete separation of the pulp from the internal pit and simultaneously crushes the fruit, creating a final product suitable for fermentations, jams, fruit juices (by carrying out multiple steps). The possibility of installing sieves of various punctures from 0.6 to 12mm, allows the use of the machinery with multiple types of product and in particular: cherries, plums, apricots, apples, pomegranates, prickly pear, tomato, aronia, fruits wild berries (blueberries, strawberries, raspberries, sea buckthorn), olives (for applications with pâté).

The loading hopper is equipped with a dosing screw, and the internal shaft is equipped with adjustable rubber blades. The discharge of the inedible part (pits, seeds, peel) takes place in the front part of the machinery, while the unloading of the processed product is always in the lower part. The dismantling of the machine is very simple: both an upper cover and the possibility of extracting the net through the drain protection are provided.

In the case of fruit with a diameter greater than 8cm, it is recommended to use the higher models (Delta 1 -2). Processed fruit must be ripe and soft; if not, we suggest a passage in hot water for 30 minutes before processing.

The machine is available with single-phase 220V 50hz or three-phase 380V 50hz power supply



DELTA 1

Destoner-pulper made entirely of AISI 304 stainless steel, suitable for medium / small productions. The machine realizes a complete separation of the pulp from the internal pit and simultaneously crushes the fruit, creating a final product suitable for fermentations, jams, fruit juices (by carrying out multiple steps). The possibility of installing sieves of various punctures from 0.6 to 12mm, allows the use of the machinery with multiple types of product and in particular: cherries, plums, apricots, peaches, apples, pomegranates, prickly pears, tomatoes, aronia , olives (to extract the pulp).

The loading hopper is equipped with a dosing screw, and the internal shaft is equipped with adjustable rubber blades. The discharge of the inedible part (pits, seeds, peel) takes place in the front part of the machinery, while the processed product is unloaded in the lower part with a DIN 80 fitting for connection with suction pumps. Furthermore, in the case of connection with the ROTOFILTER machinery, the unloading hopper is modified with a special slipway between the two machines.

The dismantling of the machine is very simple: both an upper cover and the possibility of extracting the net through the drain protection are provided.

The machine can process fruit up to a maximum diameter of 12cm, in addition it is recommended to use the Delta2 model. Processed fruit must be ripe and soft; if not, we suggest a passage in hot water for 30 minutes before processing.

It is available with three-phase motor both in the standard 3kw version and in the special 4kw version. On request it is possible to insert a speed variator

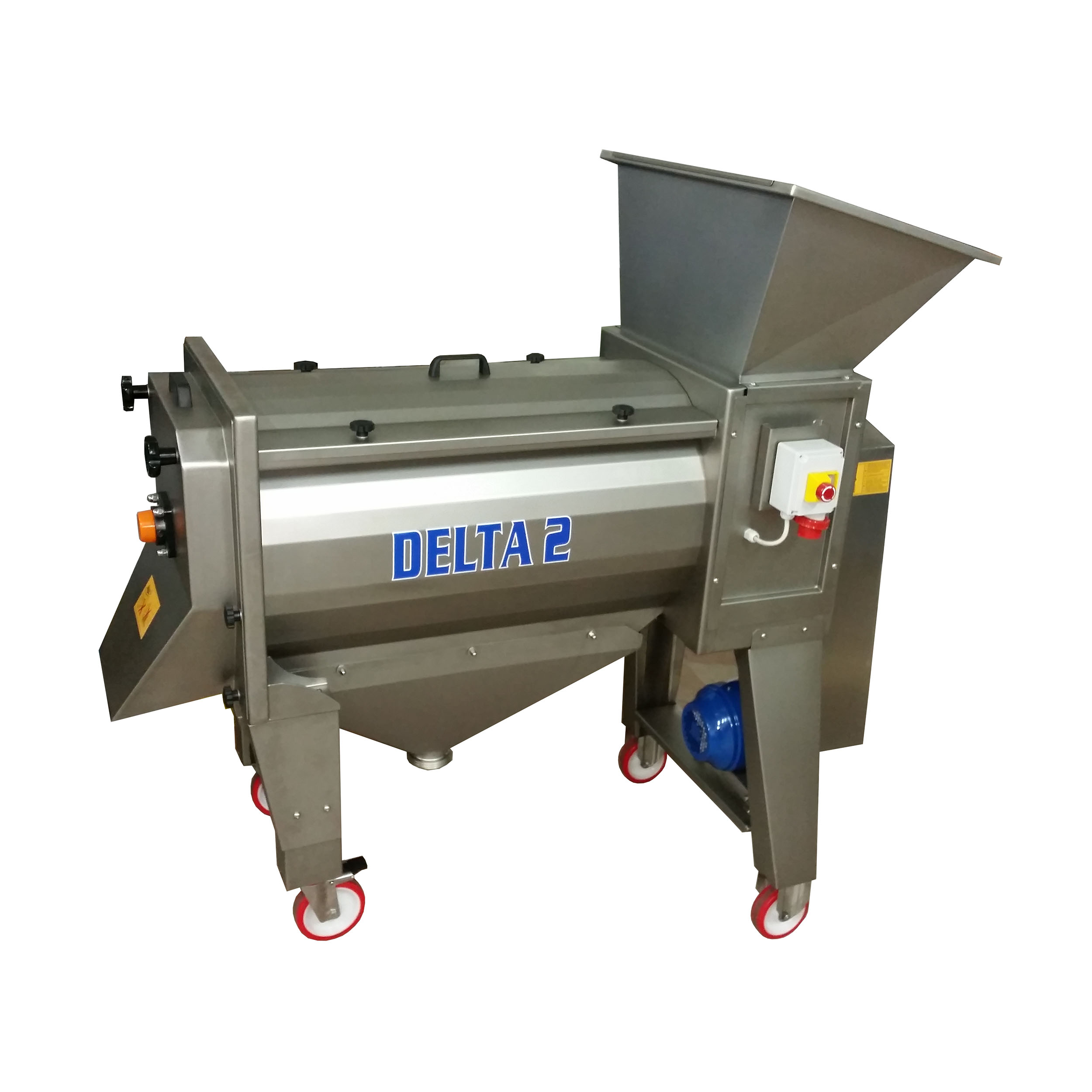

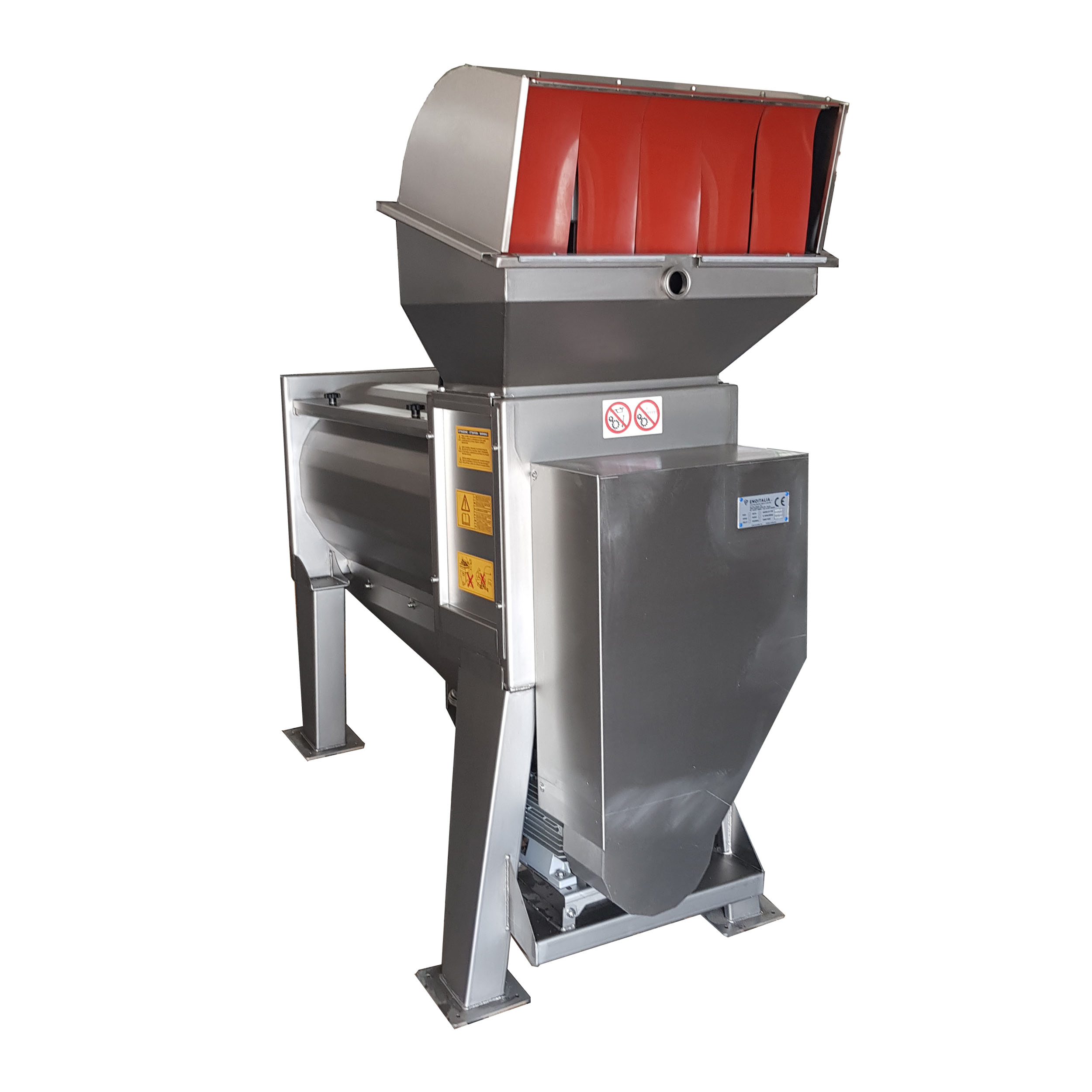

DELTA 2

Destoner-pulper made entirely of AISI 304 stainless steel, suitable for industrial production. The machine realizes a complete separation of the pulp from the internal pit and simultaneously crushes the fruit, creating a final product suitable for fermentations, jams, fruit juices (by carrying out multiple steps). The possibility of installing sieves of various punctures from 0.6 to 12mm, allows the use of the machinery with multiple types of product and in particular: cherries, plums, apricots, peaches, mangoes, apples, pomegranates, prickly pears, tomatoes , chokeberry, olives (to extract the pulp).

The loading hopper is equipped with a dosing screw, and the internal shaft is equipped with adjustable rubber blades. The unedible part (pits, seeds, peel) is unloaded on the front of the machine, while the unloaded product is unloaded on the lower part. The dismantling of the machine is very simple: both an upper cover and the possibility of extracting the net through the drain protection are provided.

The Delta 2 machinery can be modified, according to customer specifications, to make it suitable for demanding applications (for example, processing of Hayden Mango). The very robust structure of the machine makes it suitable for demanding applications, and can process fruit up to a maximum diameter of 18cm (with special loading hoppers). Processed fruit must be ripe and soft; if not, we suggest a passage in hot water for 30 minutes before processing.

It is available with three-phase motorization both in the standard 4kw version and in the special 5.5 and 7.5kw version. On request it is possible to insert a speed variator.

To watch the video of the product, please click here and then click on “Destoner – Pulper”

 ModelEngine HP (Kw) Alimentation  Stone unloading heightJuice unloading heightLoading height Capacity Dimension Weight
 DELTA ZERO 1,5 (1,1) Single-phase/  Three-phase 400 mm300 mm 1300 mm 550 kg/h 1100x650x1300 mm 80 kg
 DELTA 1 4 (3) Three-phase 480 mm370 mm 1420 mm1200 kg/h1400x700x1420 mm 150 kg
 DELTA 2 5,5 (4)Three-phase480 mm 370 mm1620 mm2000 kg/h1800x850x1650 mm 250 kg
