Band elevators

SKU: 423/424

Description

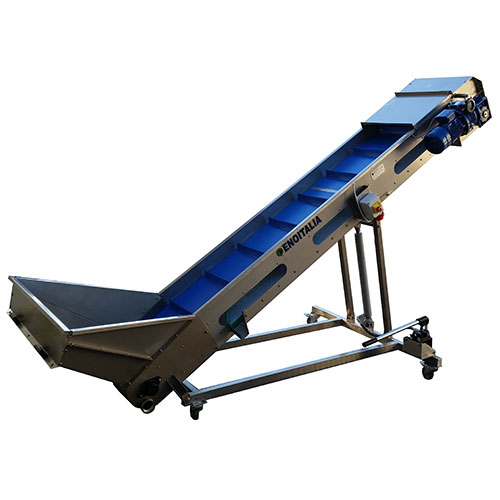

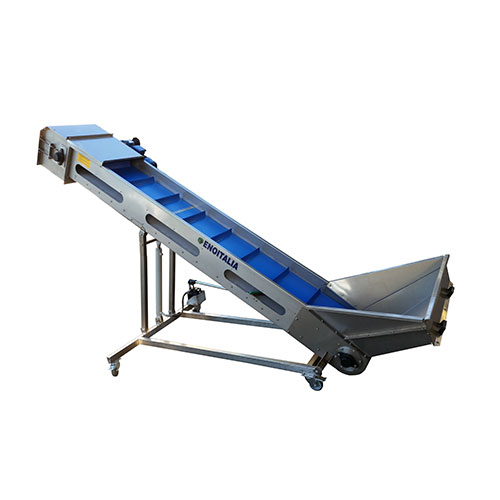

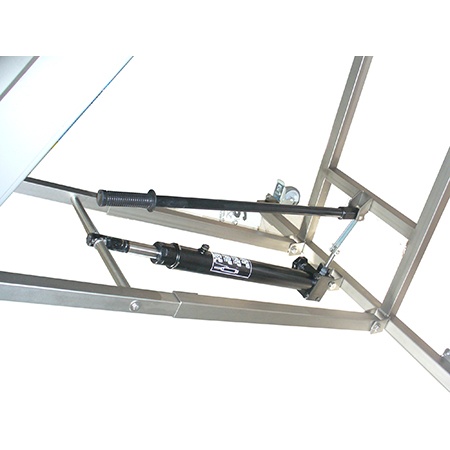

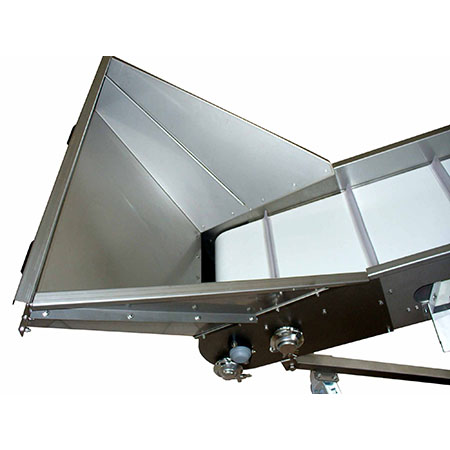

Stainless steel belt elevators, with a large hopper 910x750mm (on request available in size for macrobin). Equipped with stainless steel trolley with a hydraulic jack to adjust the height. The tape has a size of 450mm wide and a variable length 2500mm / 3000mm / 3500mm.

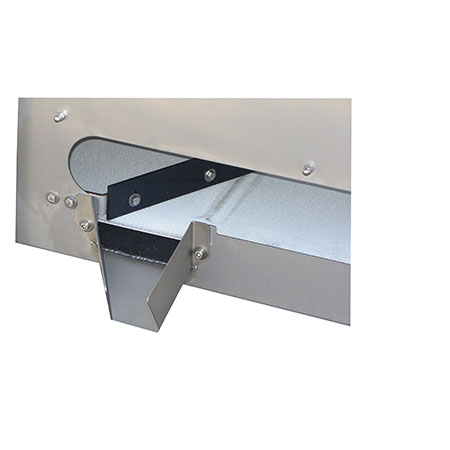

Supplied as standard with scraper for cleaning and drain fitting for liquid. The machine is driven by variable speed 1.0 kw.

Model Lenght Engine Hp (Kw) Hopper dimension Loading height Discharge height Capacity Weight
SC 3000 3000 mm 2(1,5) 910×750 mm 710/480 mm 1680/2190 mm 2-10 Ton/h 230 Kg
SC 3500 3500 mm 2(1,5) 910×750 mm 710/480 mm 1960/2570 mm 2-10 Ton/h 250 Kg
