Tables selection and loading

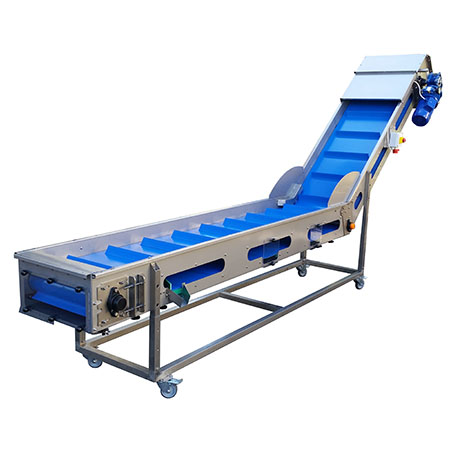

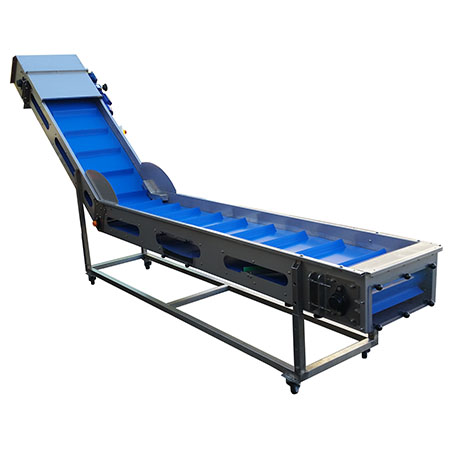

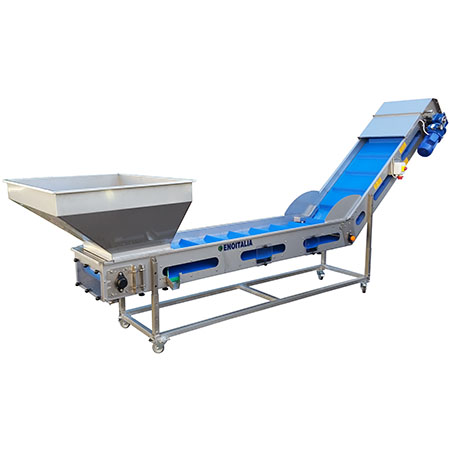

Sorting and loading belt, designed to make a first selection of the grape. It is made of stainless steel with telescopic legs. Tape in food material with width 600mm, equipped with support for the transport of product. On request can be applied a loading hopper made of stainless steel of various sizes. Comes with variable speed 1.5 kw, or on demand with electronic speed control. Size: 3600mm sorting plan, the total size of 4600mm.

Model Engine (Kw) Lenght table Lenght elevator Height table Height discharging Capacity Dimension Weight
TC 4600 1,5 3000 mm 1600 mm 800-1050 mm 1870-2000 mm 2-10 Ton/h 4000x800x2500 mm 230 kg
