Dosing OPTIMA

SKU 9020 Categorie ,

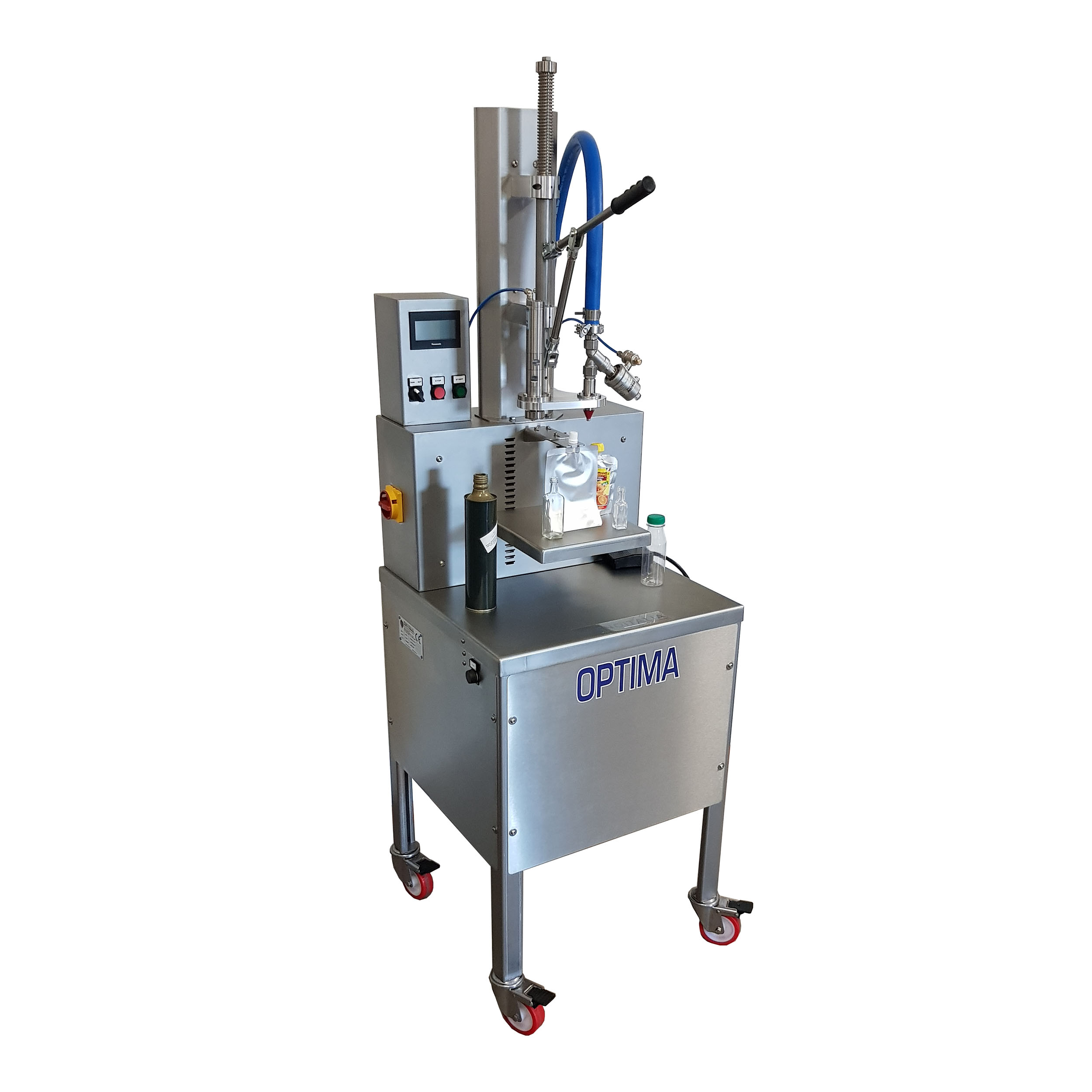

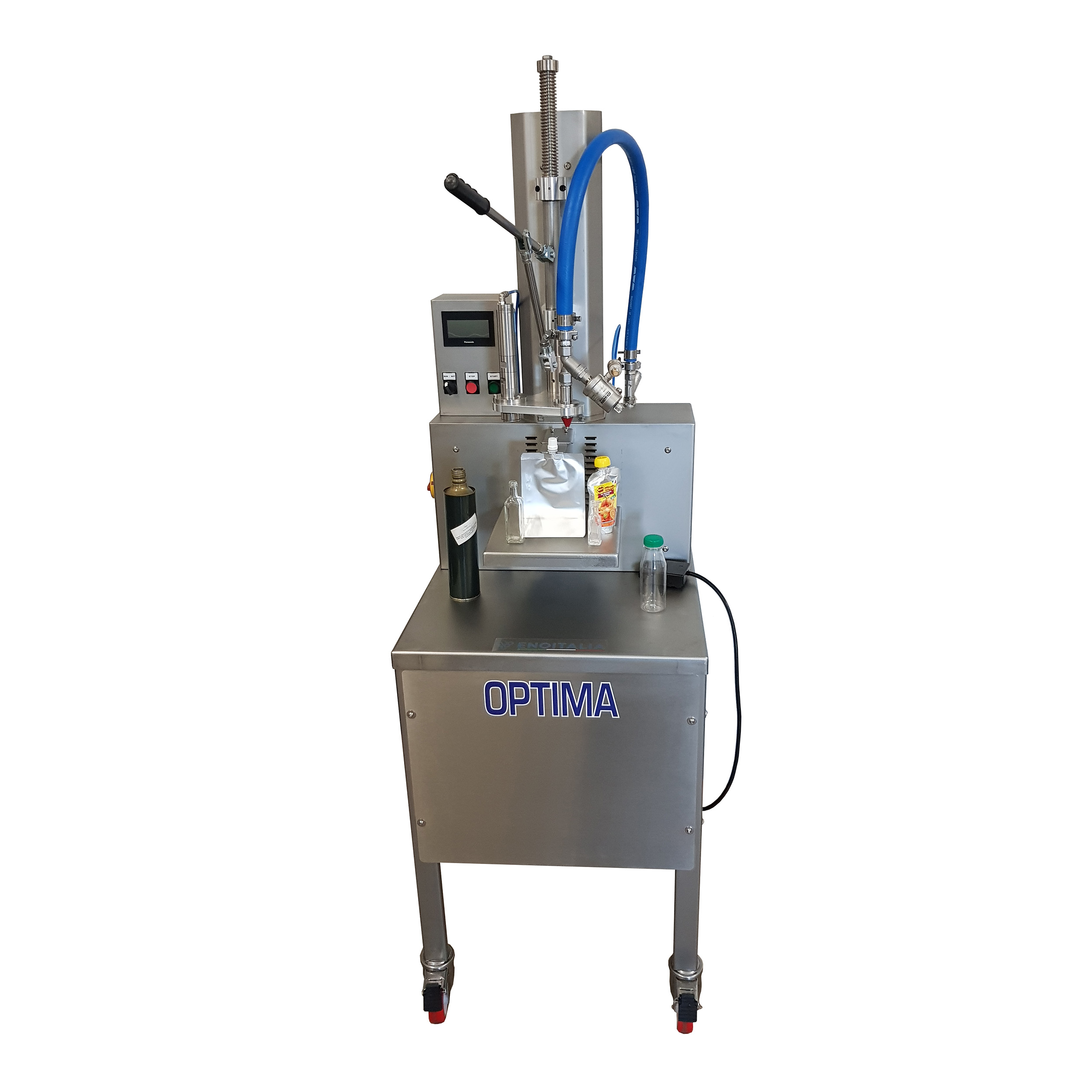

OPTIMA is a professional self-learning dosing machine suitable for dosing food or industrial products, filtered liquid or semi-dense liquid, capable of meeting multiple needs in terms of container capacity, filling speed, accuracy of the filling level, type of containers used. The possibilities of use are severals: food liquids (OIL, WINE, JUICES), cosmetics (ESSENTIAL OILS), CLEANING LIQUIDS (also alcohol-based). The minimum capacity is 8 milliliters, while the maximum capacity has only a limit in the size of the container to be used compatible with the size of the machinery. It is possible to fill glass, aluminum, PET bottles, flexible containers.

SIMPLICITY: filling is quick and completely automatic: the operator must select the container to be filled and start the machinery, deciding whether to perform multiple filling cycles or only one cycle. The setting of the various formats to be filled takes place in a few seconds through the NEW function: it is the operator who decides the filling speed for each individual format, having the possibility of setting a double speed in cases where it is deemed appropriate. Furthermore, it is always possible to modify the set parameters by making minimum increases or decreases on the quantity dispensed (± 1ml).

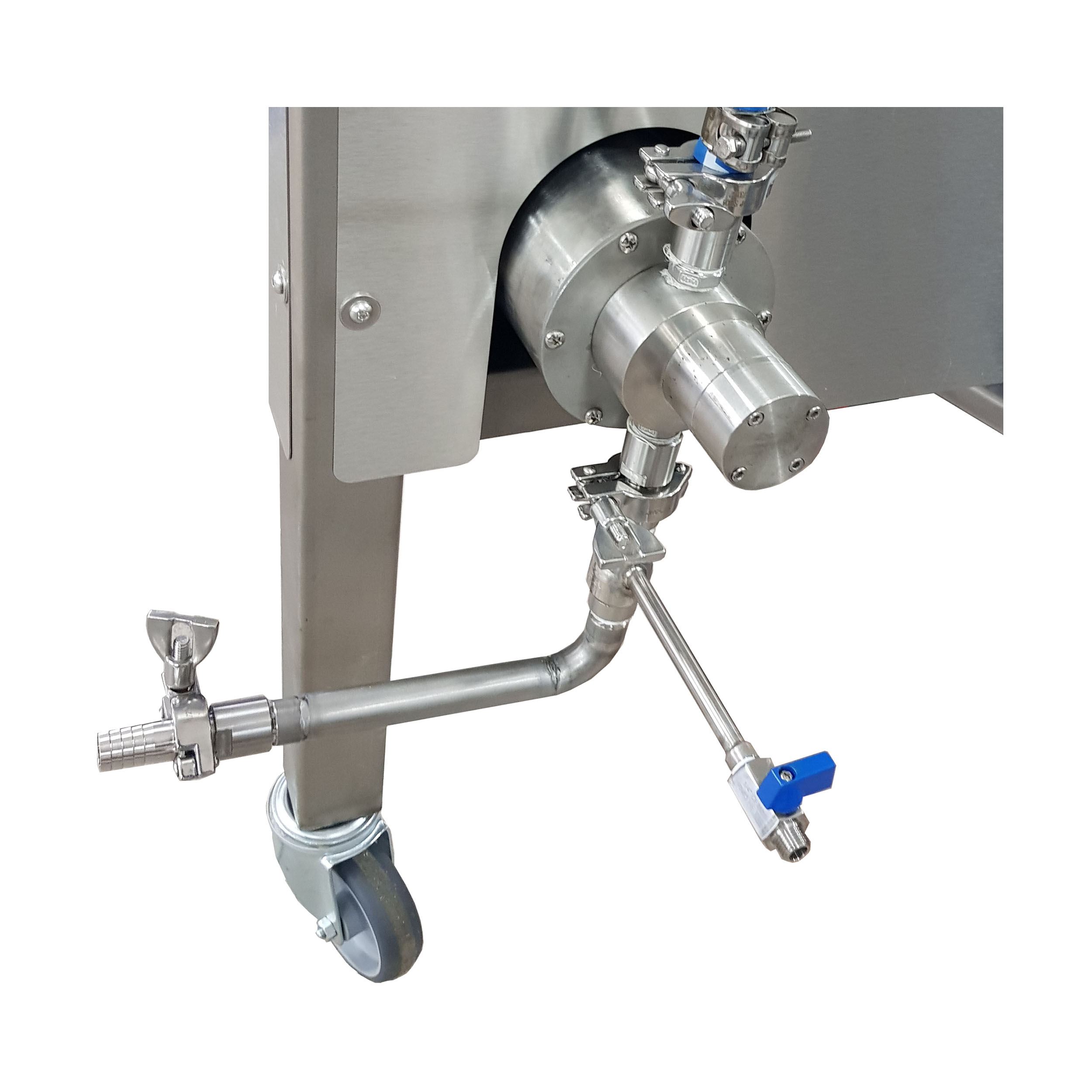

OPERATION: the filler is equipped with a gear dosing pump built entirely in stainless steel, controlled by an electronic speed variator, and a control PLC with dedicated software. Through the multi-colored touch screen it is possible to access all the functions and settings of the machinery, displaying the various formulas set, the modifiable parameters and the new storage function. The pump used is self-priming and it is sufficient to connect it to the product storage tank to be able to start filling.

OTHER ADVANTAGES: AUTOMATIC operation with setting of only the pause time between one cycle and the next; start of the machine with remote push-button; luminous warning start of filling to avoid lack of container or unwanted starts; structure completely in AISI 304 stainless steel; height-adjustable bottle support surface; bottle centering device; total product discharge valve inside the circuit; no metric approval required.

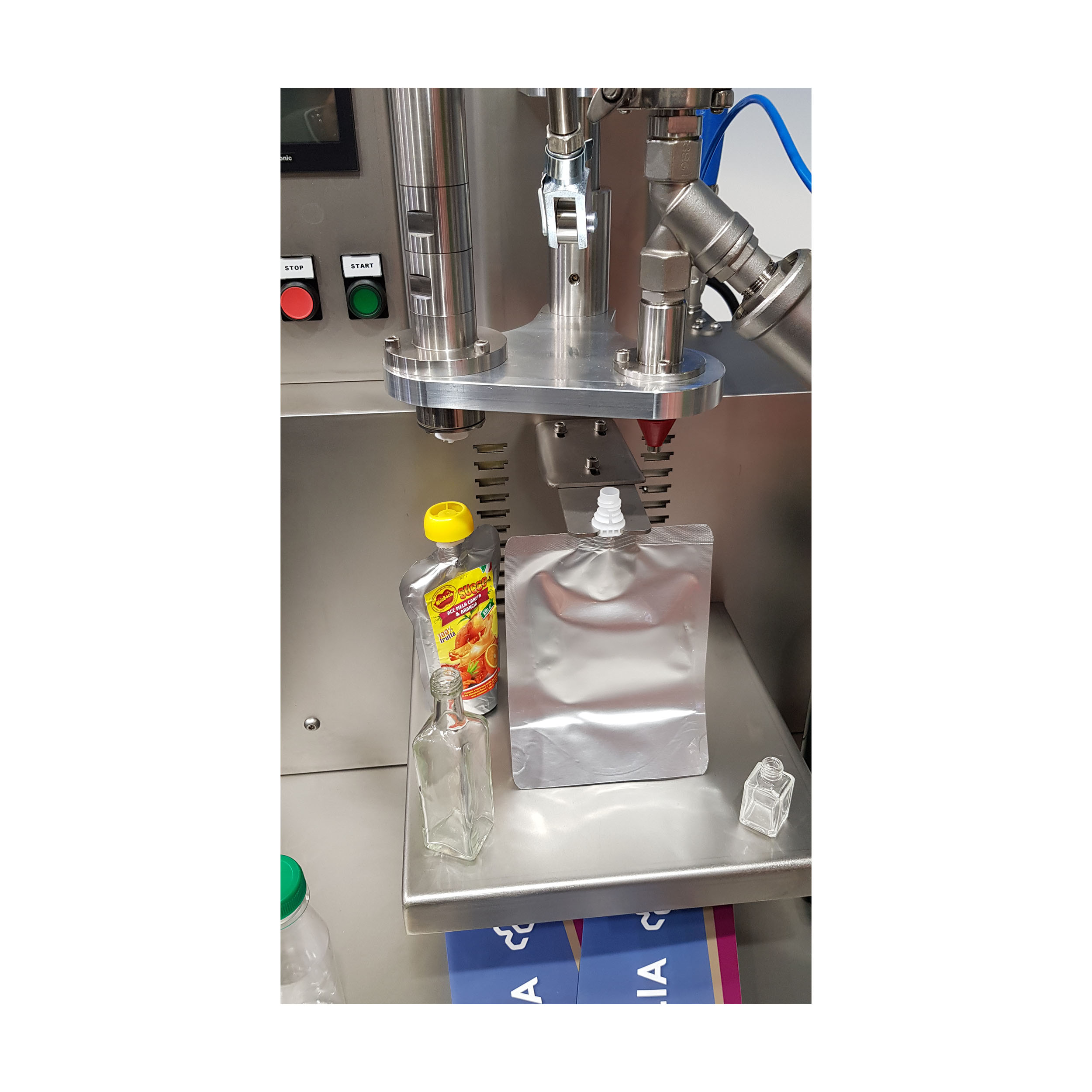

DOSYPACK FILLING: the machine can be supplied in the version for filling and capping flexible containers like Dosypack. The installation of the bag is manual; filling is automatic with the dosage as indicated above; bags are capped with the appropriate pneumatic capper. The operator manages the two filling and capping phases through the appropriate lever.

To watch the video of the product, please click here, and then click on “Filler Optima”



Model Containers production 5 lt/h Dimension Capacity Engine (Kw) Weight kg
9020 380 600x600x1600 mm 5 – 1000 1,2 monophase 110
