Rubber impeller pumps with mechanical variator EURO MV

Home/Pumps/Impeller pumps/Rubber impeller pumps with mechanical variator EURO MV

Rubber impeller pumps with mechanical variator EURO MV

SKU: POMPE EURO MV Categories: , Tags: , , ,

Description

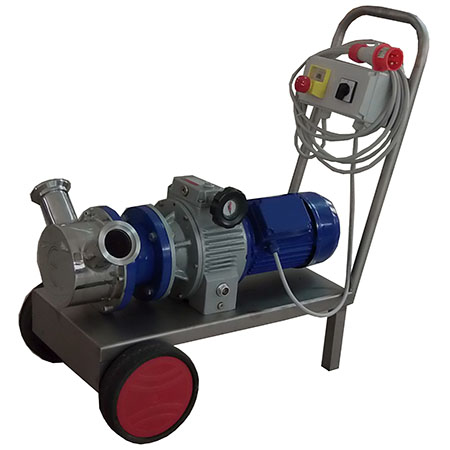

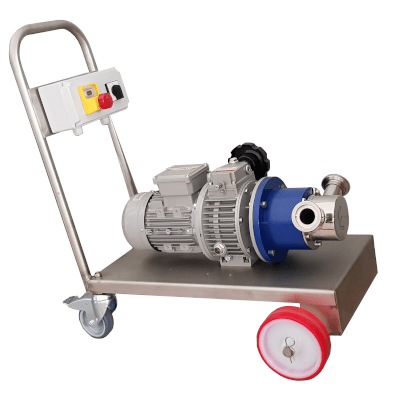

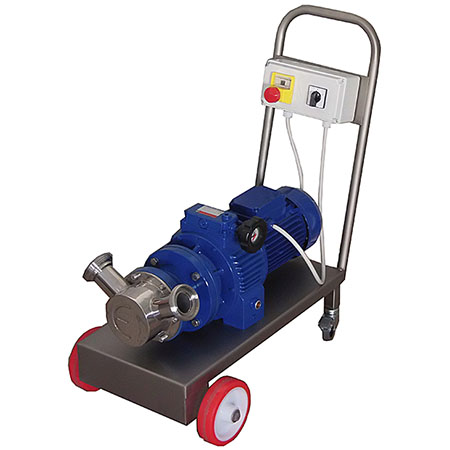

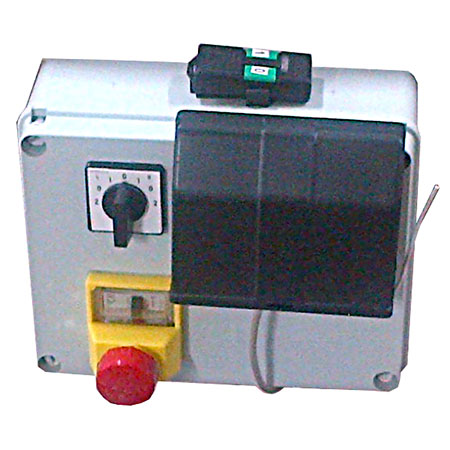

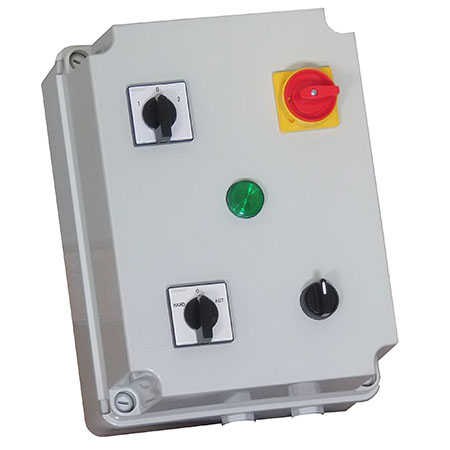

Self-priming pump made entirely in stainless steel AISI 304 with mechanical speed variator. The speed range for this type of pump is 170-900 rpm, and can be changed only during the working. This is a product able to satisfy multiple uses (from the transfer of liquids with solids, the feeding of a filter or a bottling plant). As standard all pumps are equipped with stainless steel trolley, gravity indicator, control panel CE.

The models available are the following:

Model Engine Hp RPM/min Capacity l/h Dimensions

EURO 20

TF 1 (0,75) 175 → 900 230 → 1000 550X350X600 kg22
EURO 30 TF 1 (0,75) 175 → 900 1100 → 4500

700x410x650 kg30

EURO 40

TF 1 (0,75) 175 → 900 2700 → 9500

700x410x650 kg31

EURO 50

TF 2,25 (1,6) 175 → 900 2900 → 12000 810x410x650 kg41
EURO 60 TF 2,25 (1,6) 175 → 900 6000 → 23000

810x410x650 kg47

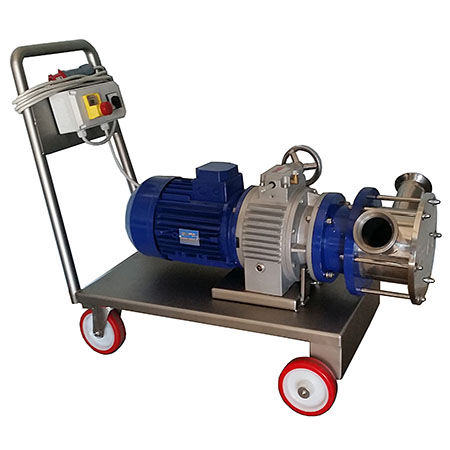

EURO 80 TF 5,5 (4) 150 → 600 12500 → 50000

810x410x650 kg92
