Peristaltic pumps with hopper

SKU: 6300/6301/6302/6303 Categories: , Tag:

Description

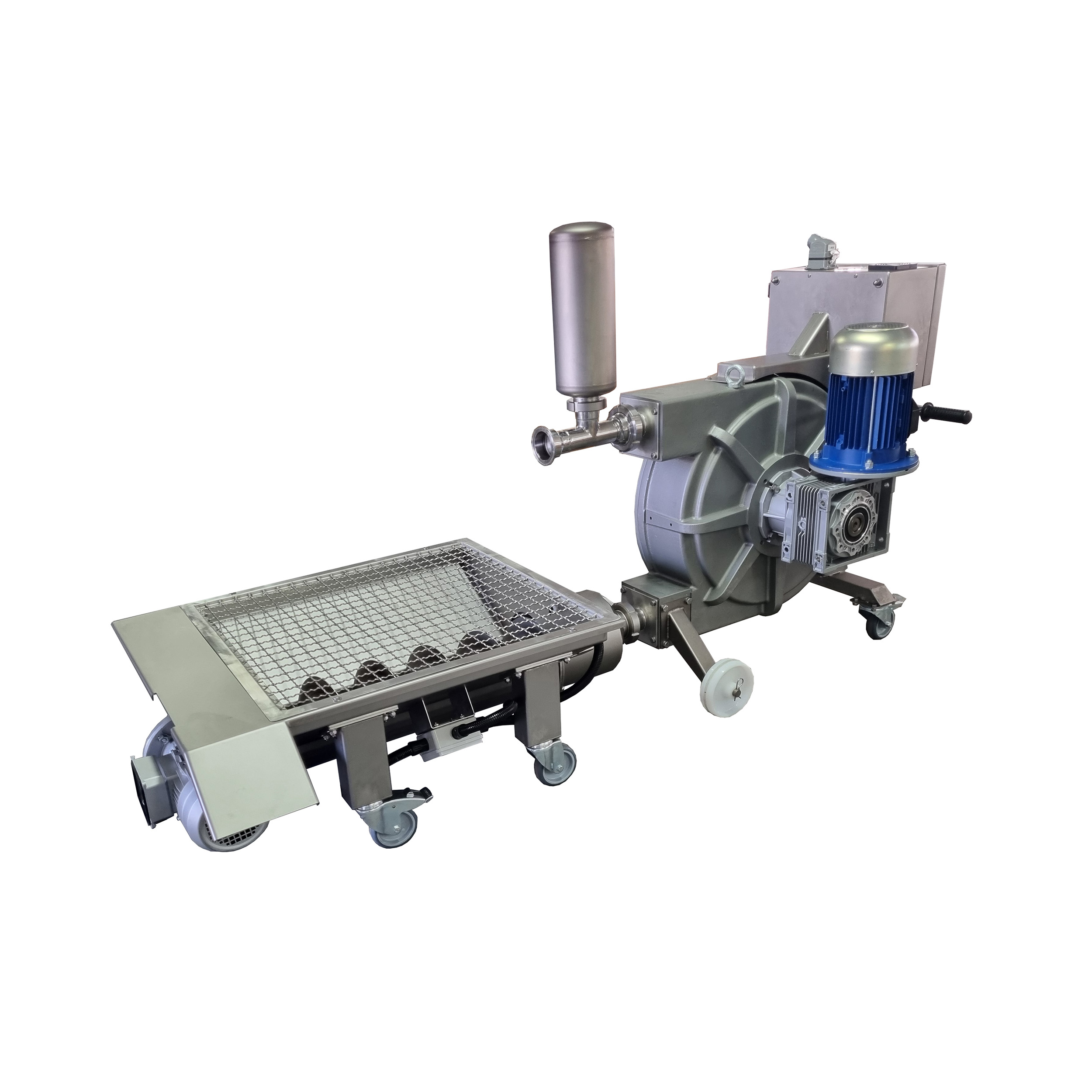

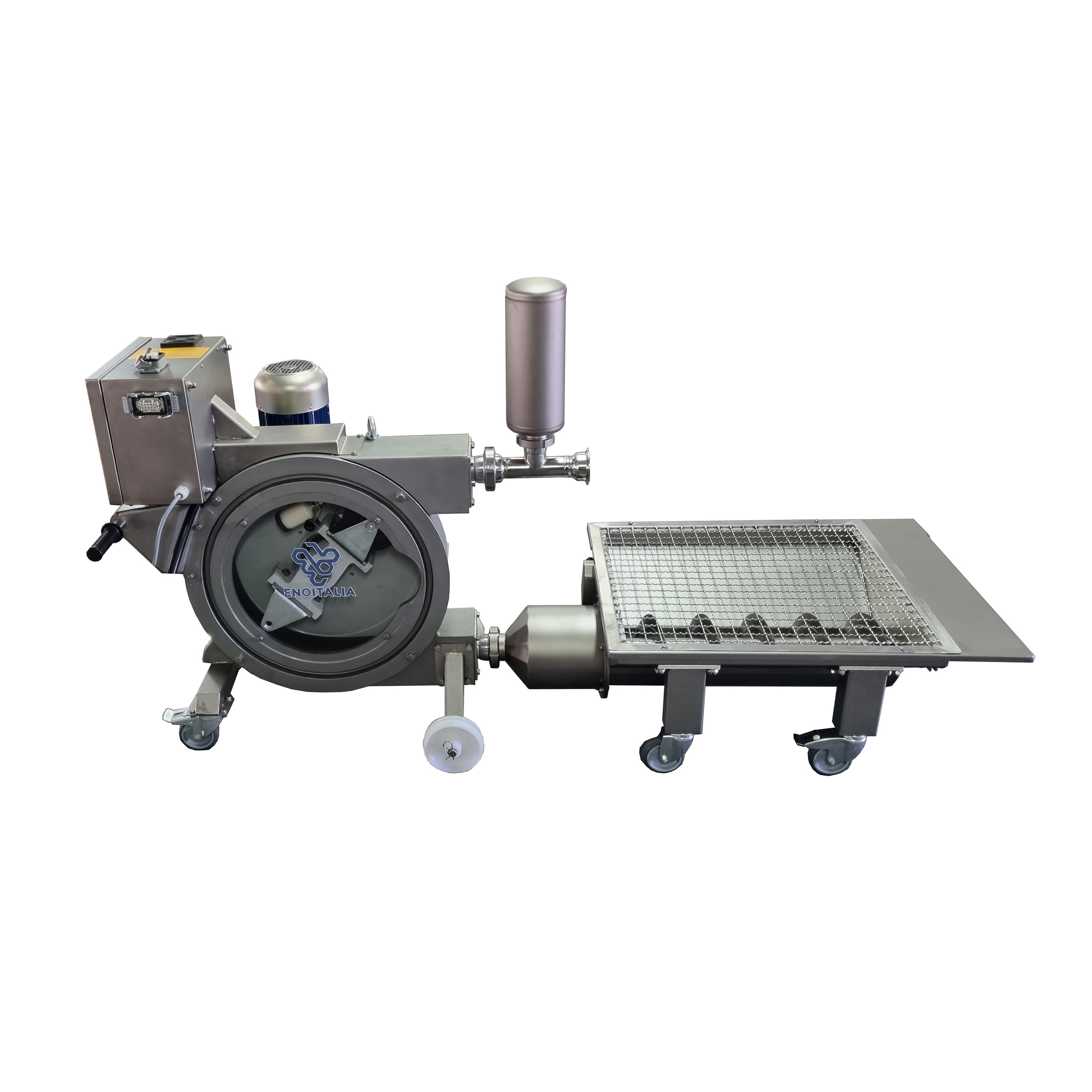

The peristaltic pump, is the most professional solution for the cellar. The solution with integrated loading hopper is suitable for application with destemmed grape and fermented grape. The loading hopper is in stainless steel, with separate engine and transport wheels; the hopper is connected to the pump with a fitting DIN type. To being used in the filling of small containers (barrels), also this version comes with two compensation chamber and pressure automatic sensor. The engine is controlled by an electronic inverter, standard supplied with a remote radio control, which can handle the speed and rotation of the pump.

ModelEngineProduction with liquid WeightDimensionConnectionMax production with destemmed grapeGiri alberiPressione
PP7121,50+0,55 kw70 hl/h170 kg1790x750x1016 mmDIN505000 kg/h10-75 RPM3 bar
PP7133,00+0,55 kw120 hl/h260 kg2100x750x1186 mmDIN659000 kg/h10-75 RPM3 bar
PP7144,00+0,75 kw200 hl/h365 kg2245x750x1377 mmDIN8014000 kg/h10-70 RPM3 bar
PP7155,50+0,75 kw2300 hl/h405 kg2332x750x1430 mmDIN802000 kg/h10-70 RPM3 bar
